Heating Element For Backrest, Removing and Installing

Heating Element For Backrest, Removing And Installing

Removing







- Remove seat
- Remove backrest.
- Remove cover for backrest.

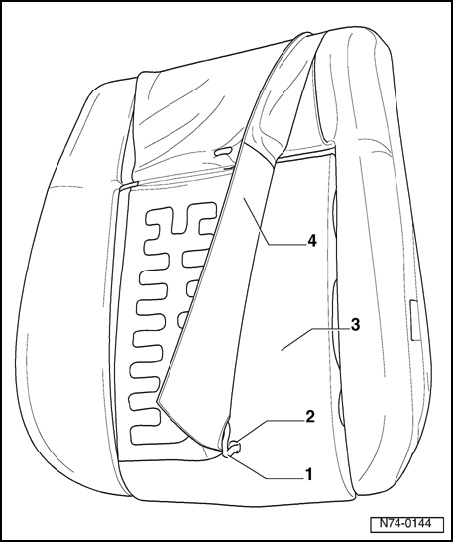

- Guide cable - 1 - through opening - 2 - in upholstery - 3 - and take off heating element - 4 -.

Installing

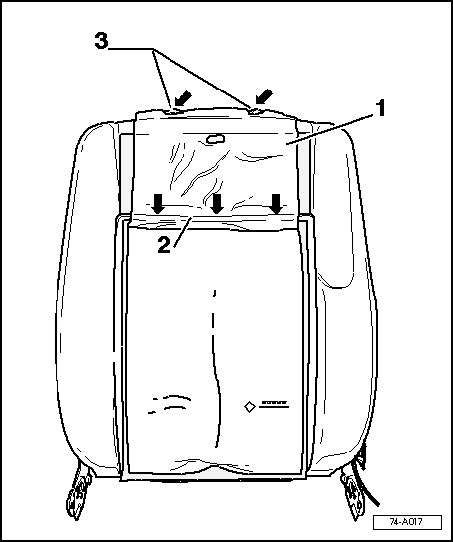

NOTE: When installing material - 1 - of heater element, it must be connected with backrest cover and backrest frame - 2 - in the groove (depression) utilizing two sided tape. The heater element must be installed over the head rest adjuster guide holes - 3 - and secured with head rest guide.
