Rear Side Panel Molded Trim, Component Layout

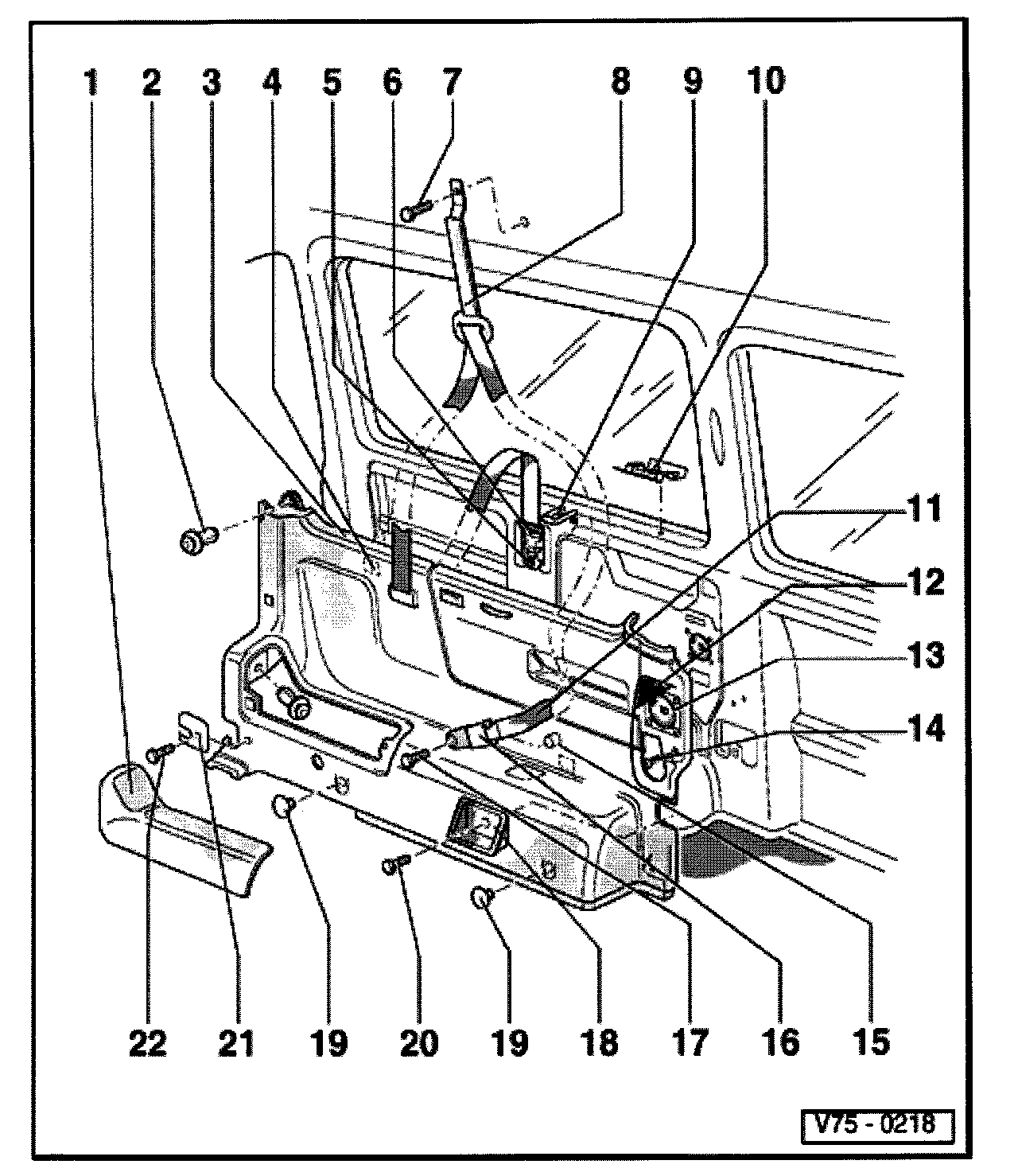

Rear side panel molded trim, component layout


NOTE:
- Procedure is for one side, opposite side is mirror-image.
- Single seat (passenger compartment), bench, bedboard, remove together with left or right guide rail and supporting frame.
- To remove molded trim at rear remove roof frame trim at rear, upper B-pillar trim C-pillar trim and D-pillar trim, and loosen left and right side sill covers.







1 - Cover
2 - Clip
- 2-part
- Removal: Remove inner section with Allen wrench.
- Installation: Press outer section and inner section simultaneously in mounting hole.
3 - Side panel molded trim, rear
- Removal
- Installation
4 - Clip
5 - Bolt
- 40 Nm (30 ft lb)
6 - Inertia reel
7 - Bolt
- 40 Nm (30 ft lb)
8 - Relay fitting, seat belt
- Removable with 2-part trim
9 - Securing point, bench backrest
10 - Bracket
11 - Seat belt
12 - Speaker cover
13 - Speaker with connector
14 - Recessed screws
- With washer and cap
15 - Spacer sleeve
16 - Belt fitting
17 - Bolt
- 40 Nm (30 ft lb)
- With cap
18 - Belt guide with locking panel
19 - Plug
20 - Recessed screw
21 - Cover, guide blocks
22 - Recessed screw
