Removal and Replacement

- Remove door trim
See 'Body And Frame, Trim Panel.' Service and Repair
- Remove lift rail with door glass from window regulator.
- Slide door glass upward and secure (e.g. adhesive strip)

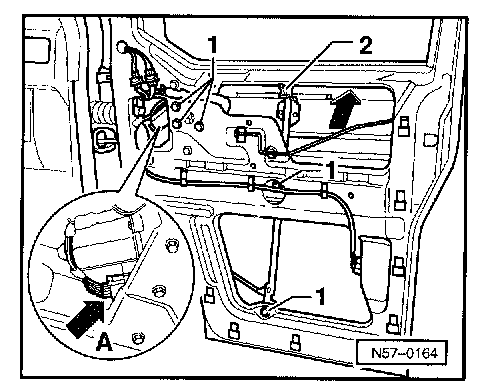

- Disconnect window regulator motor connector -arrow A- (V14 or V15)
- Remove hex bolts -1-.
- Unhook window regulator clip -2- on door opening.
- Remove window regulator with motor from upper opening -arrow-.
- Tightening torque: Hex bolt -1- = 7 Nm (62 in. lb)
