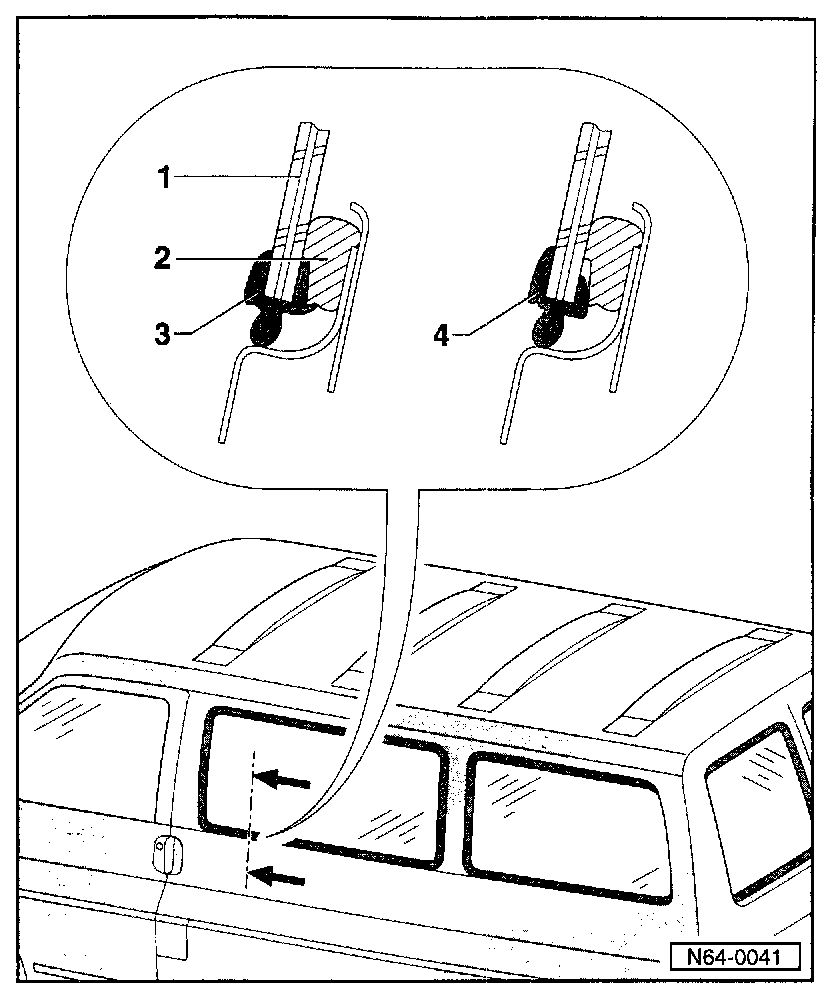

Side and Rear Window, Removing/Installing

1 - Side/rear window
- Removing:
- Unbroken Side And Rear Windows, Removing
Broken Side And Rear Windows, Removing
- Preparations for installation Window Installation, Preparations
- Re-sealing Window Sealing
2 - PUR adhesive sealant
- Bead cross section
Width = 8 mm (113 in.)
Height = 13 mm (1/2 in.)
- Curing time Window Sealing
5 - Window molding
- One-piece, destroyed during removal
- Mount first before applying adhesive bead
- See item 4 for re-repair profile. If glass is replaced use production seal.
4 - Molding (Repair profile)
- Beginning 10.95
- Size to fit
- To be used during painting, without removing glass.
- See Parts Department for correct part number
- Installing Molding (Repair Profile), Installing
