Molding (Repair Profile), Installing

The production molding is removed.
- Spray glass edge with D 009 401 04 lubricant.

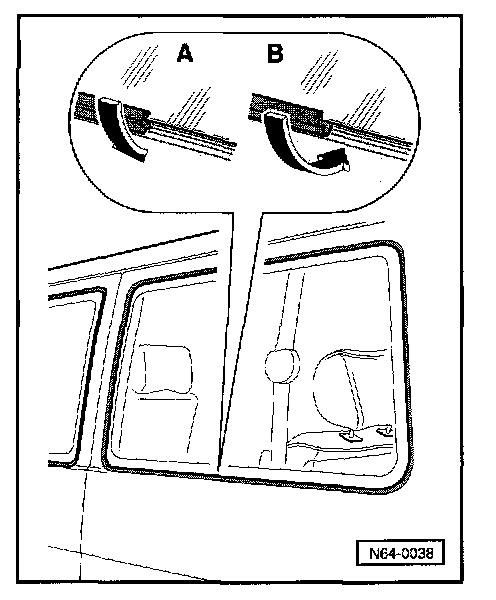

- Place repair molding in middle lower area -arrow A- and fasten along window cutout -arrow B-.
- Cut repair molding approximately 4 mm (0.15 in.) longer.

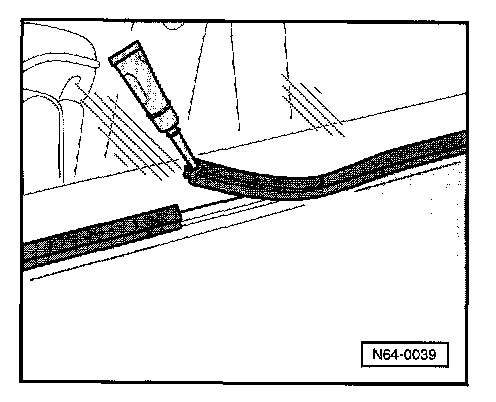

- Apply Cyan acrylic adhesive AMV 195 KD1 to repair molding end.

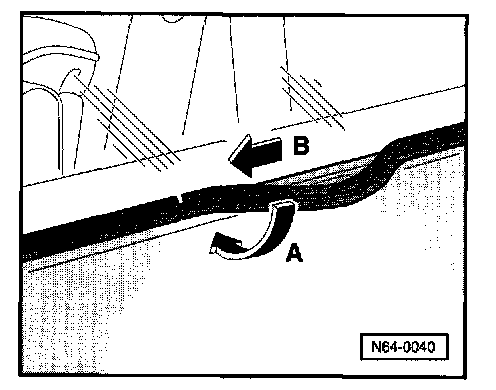

- Repair molding end should also be attached -arrow A-.
- Press repair molding -arrow B- together and hold for five seconds.
- Install remainder of seal in window cut out.
