Procedures

- Remove front door trim
See 'Body And Frame, Trim Panel.' Service and Repair

- Open window completely and remove from regulator.







- Tilt door glass toward front and lift out through window slot.
- Position window in door.
- Loosely screw regulator rail to regulator.

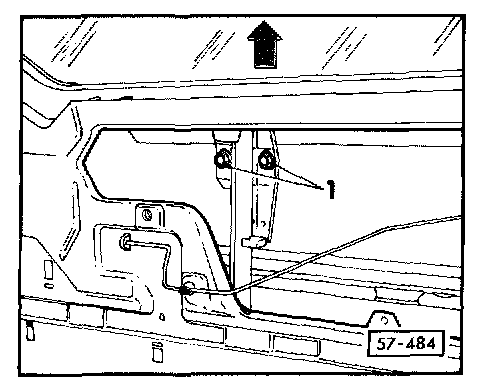

- Close window completely with crank mechanism and tighten hex bolts -1- to 70 Nm (52 ft lb).
Tightening torque:
Hex bolts -1- = 7.0 Nm (62 in. lb)
