Manual Transmission/Transaxle: Locations

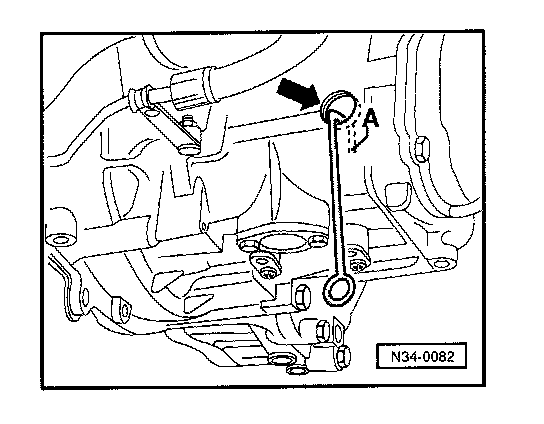

Refill Location

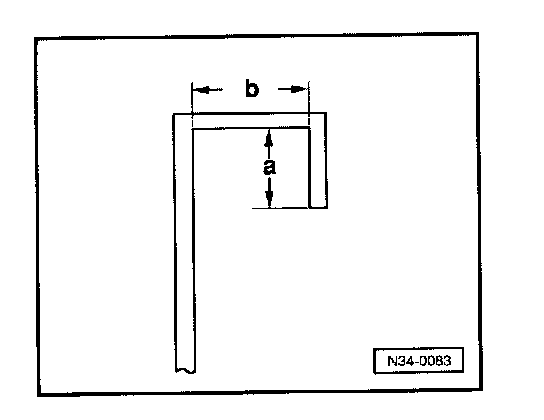

- It is necessary to manufacturer a tool to check transmission oil level:
- Dimension "a" 15 mm (0.5905 in.)
- Dimension "b" 22 mm (0.8661 in.)


Oil Filler Plug Torque 25 Nm. (18 ft. lbs.)
