Transmission Cooler: Service and Repair

Component Notes And Information

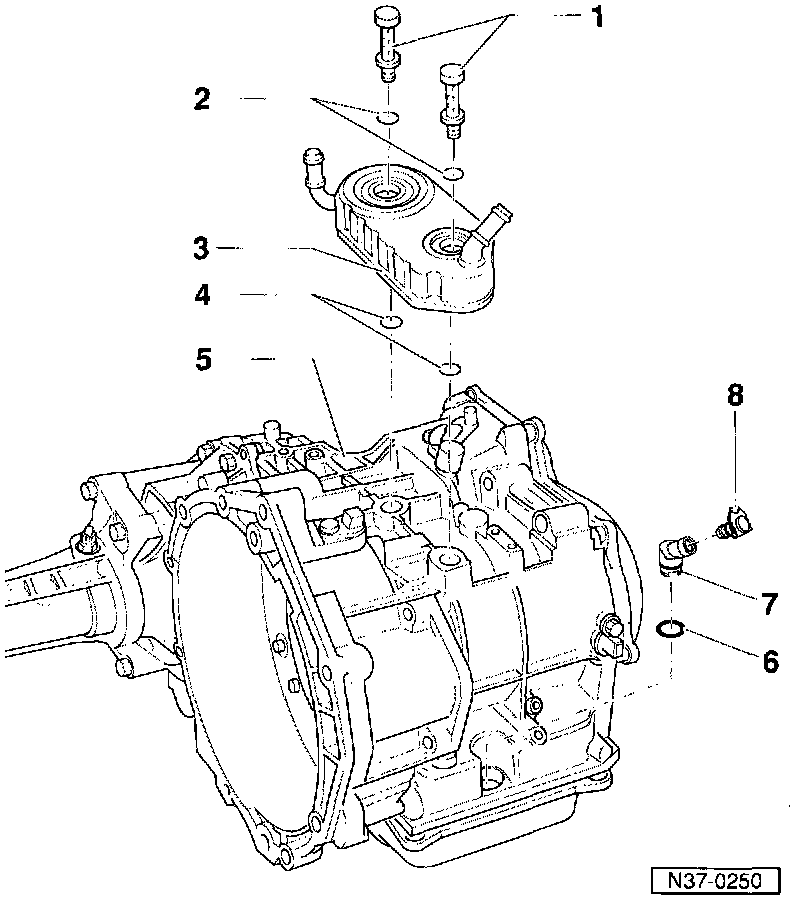

NOTE: During service procedures, refer to the illustration above and the information below.

1 Banjo bolt
- Tighten to: 35 Nm (26 ft 1b)
2 O-ring
- Always replace
3 ATF cooler
4 O-ring
- Always replace
5 Transmission housing
6 0-ring
- Always replace
7 ATF filler tube
8 Cap
- Checking ATF level. Testing and Inspection
