Replacement

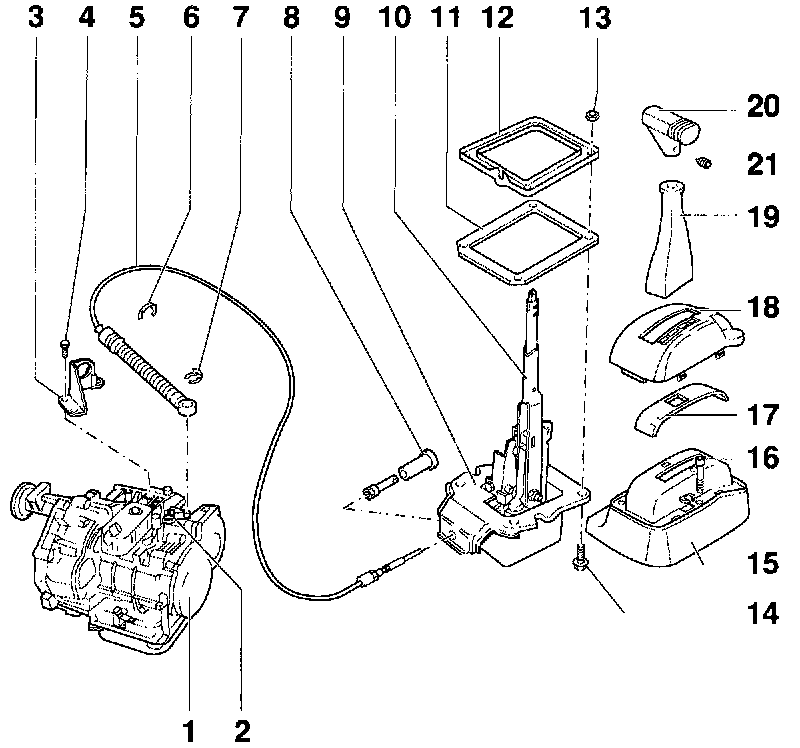

1 Selector lever
- Assemble before installing in selector lever housing
- Disassembling and assembling, refer to Disassemble/Assemble.
- Wiring routing refer to Fig. 1 below
2 Bolt
- Tighten to: 20 Nm (15 ft lb)
- For securing the selector lever cable
3 Plate with threaded holes
4 Detent plate
- Insert into selector lever housing before installing selector lever
- Disassembling and assembling, refer to Disassemble/Assemble. 5 Bolt
- Tighten to: 25 Nm (18 ft lb)
6 Selector lever housing
- Need not be removed to replace selector lever cable or individual parts of shift mechanism
7 Nut
- Tighten to: 15 Nm (11 ft lb)
8 Bolt
- Tighten to: 25 Nm (18 ft lb)

Procedures





Fig . 1 Indicator Lighting And Shift Lock Solenoid -N110 wiring, Routing
