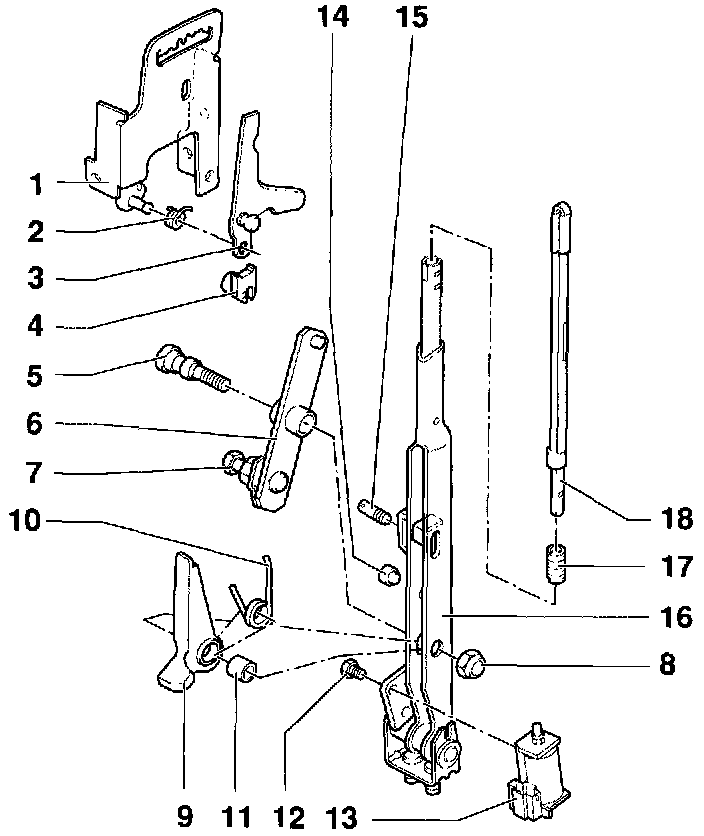

Disassemble/Assemble

NOTE: Lubricate all joints and sliding surfaces with multi-purpose grease.

1 Detent plate
- Before installing the selector lever in selector housing, assemble selector lever, detent plate, spring, locking lever and pivot piece.
2 Spring
- For locking lever
- Hook into hole of detent plate
3 Locking lever
- For vehicles with ignition key lock
4 Pivot piece
5 Combi-bolt
6 Relay lever
7 Bolt For securing the selector lever cable
8 Hex nut
- Tighten to: 25 Nm (18 ft lb)
- Always replace
9 Locking lever
- Install with spring and bushing into selector lever
10 Spring
- Install with locking lever and bushing into selector lever -16-
11 Bushing
- Install in locking lever
12 Hex bolt
- Tighten to: 3 Nm (27 inch lb)
- Install with locking fluid AMV 1 85101 A1, or equivalent
13 Shift Lock Solenoid -N110-
- Can be checked electrically, refer to Electrical Tests or Measuring Value Block. Testing and Inspection
14 Slide
- Press into the selector lever hole
15 Set screw
- Install with locking fluid AMV 185 101 A1, or equivalent
16 Selector lever
- Assemble before installing in selector lever housing
17 Spring
18 Push rod
- Grease in area of sliding surfaces
