Transporting the Automatic Transaxle

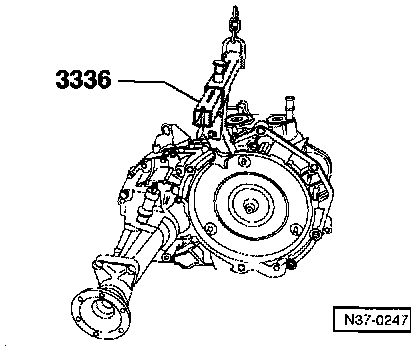

- Special tool 3336 may be used to transport the automatic transmission and when setting up transmission mount 3282.
Secure special tool 3336 to transmission housing flange.
Position pins so that 8 holes are visible in chain direction.
