Planetary Gears: Service and Repair

Component Notes And Information

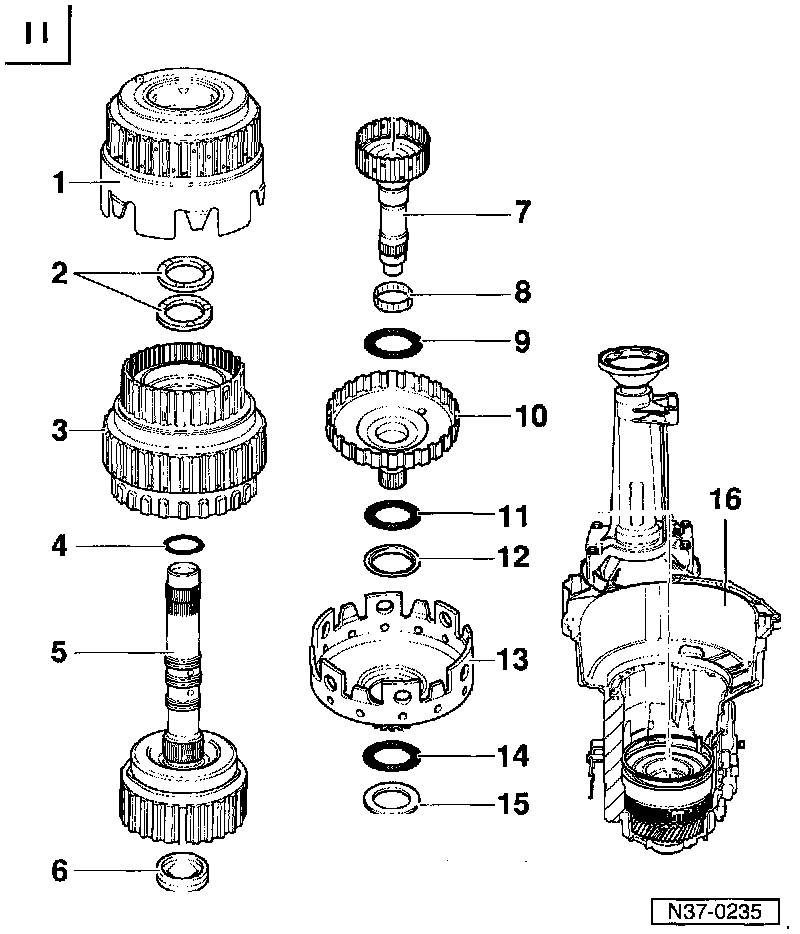

NOTE: During service procedures, refer to the illustration above and the information below.

1 Planet carrier
- Adjusting. Adjustments
2 O-ring
- Always replace
- Install in planet carrier
3 Axial needle bearing washer
4 Axial needle bearing
5 Axial needle bearing washer
- Install smooth side in input gear
6 -Transmission housing with input gear installed
7 Input gear
- Do not remove to disassemble planetary gearbox
- Removing and installing input gear or axial needle bearing for planet carrier refer to Differential Input Gear, Replacement. Service and Repair
8 Planet carrier shim
- Determining thickness, refer to Adjusting planet carrier. Adjustments
9 Washer
10 Bolt
- Tighten to: 30 Nm (22 ft lb)
- For small input shaft
11 Spacer bushing
- Clip qty. 7 into gasket
12 Gasket
- Always replace
13 Cover
14 Bolt
- Tighten to: 30 Nm (22 ft lb)
