Transmission Selector Elements

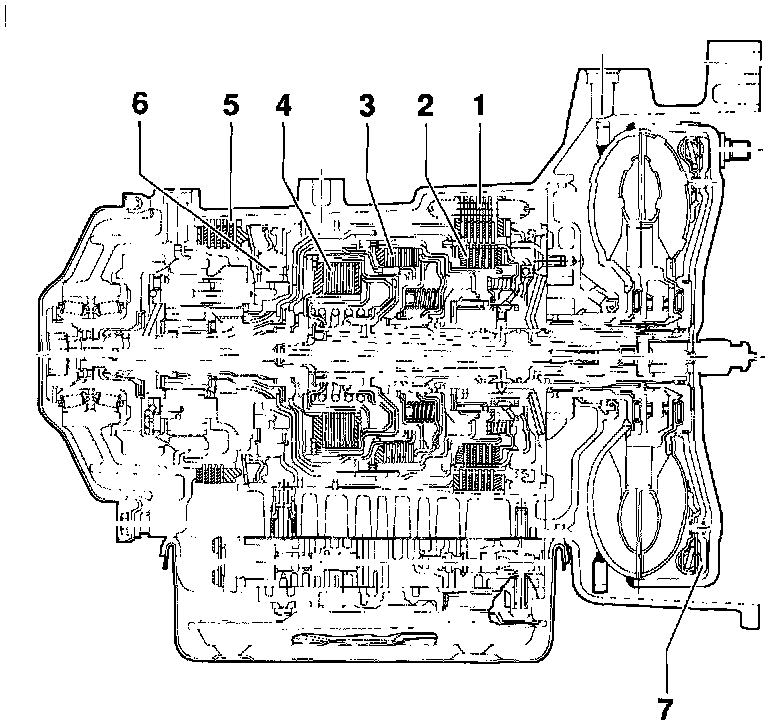

NOTE: The illustration shown is from automatic transmission 01M. The application of transmission 01P selector elements is identical.

Position Of Selector Elements

1 = 2nd and 4th gear brake -B2-
2 = Reverse gear clutch -K2-
3 = 1st to 3rd gear clutch -K1 -
4 = 4th gear clutch -K3-
5 = Reverse gear brake -B1 -
6 = Free wheel clutch -F-
7 = Lock-up clutch integrated in torque converter -LC-

NOTE: Before starting repairs to the transmission, first perform the On Board Diagnostic (OBD) program. Testing and Inspection
