Replacement

Component Notes And Information

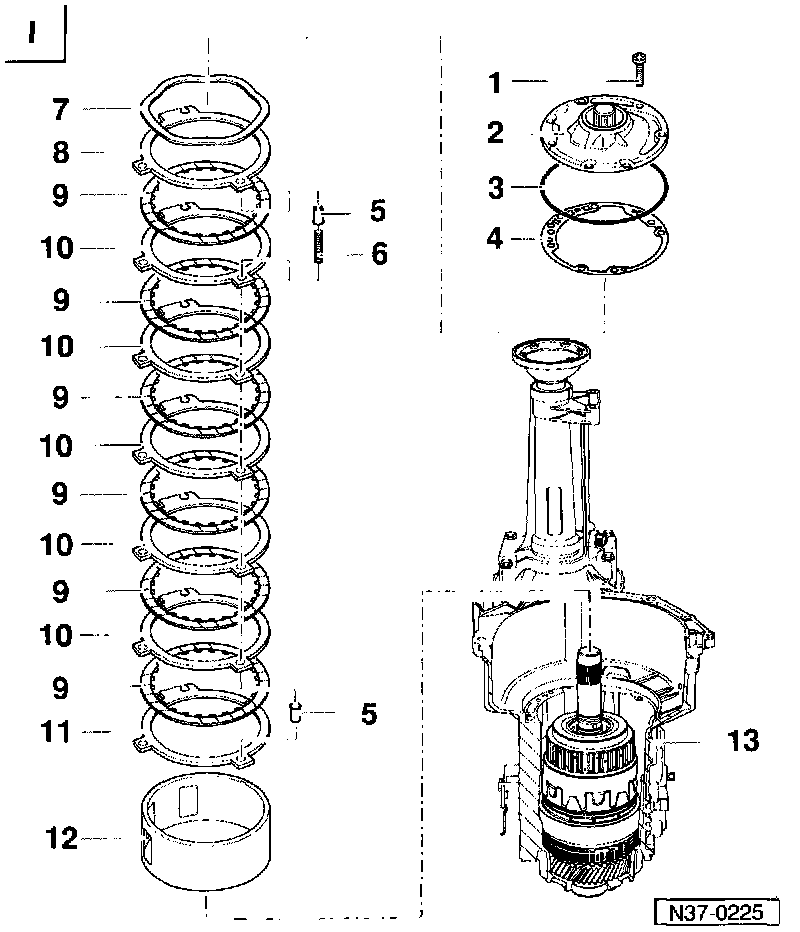

NOTE: During service procedures, refer to the illustration above and the information below.

1 Bolt
- Qty. 7
- Tighten to 8 Nm (71 inch lb) and turn 90° further (1/4 turn)
The turn of 90° may be done in several stages
2 ATF pump with -B2- piston
- Disassembling and assembling. Service and Repair
3 0-ring
- Always replace
- Place on ATF pump
4 Gasket
- Always replace
5 Spring cap, Qty. 6
- Install 3 spring caps after installing first outer plate
- Install 3 spring caps before installing last outer plate
6 Spring
- Qty. 3
7 Corrugated spring washer
8 Outer plate -B2-
- Quantity refer to to table Code Letters, Application, Ratios, Equipment. Application and ID
- Determining thickness of outer plate refer to Adjusting 2nd and 4th gear brake -B2-. Adjustments
9 Inner plate -B2-
- Quantity refer to table Code Letters, Application, Ratios, Equipment. Application and ID
- Before installing place new inner plates in ATF for 15 minutes
10 Outer plate -B2-
- Always install 2 mm thick outer plates
- Quantity refer to table Code Letters, Application, Ratios, Equipment. Application and ID
11 Outer plate -B2-
- Install 3 mm thick outer plate to supporting tube
12 Supporting tube -B2-
- For -B2- plate package
- Length of -B2- with
4 inner plates: 72.3 mm
5 inner plates: 68.6 mm
6 inner plates: 64.9 mm
- Quantity of -B2- inner plates, refer to table Code Letters, Application, Ratios, Equipment. Application and ID
- Install so that groove engages in wedge of free wheel
13 Transmission housing with clutches installed
