B1 Brake Piston

Component Notes And Information

NOTE: During service procedures, refer to the illustration above and the information below.

1 Rollers
- Installing refer to Fig. 1 below.
2 Springs
- Installing refer to Fig. 1 below.
3 Cage
- Installing refer to Fig. 2 below.
- Securing refer to Fig. 3 below.
4 Outer ring
5 Piston
- Sealing lips are vulcanized to the piston
- Moisten sealing lips with ATF before installing
- Turn piston slightly when installing
- Installed position refer to Fig. 4 below.

Procedures





Fig. 1 Rollers And Springs, Installing
- Insert springs so that spring -arrow- engages in cage.

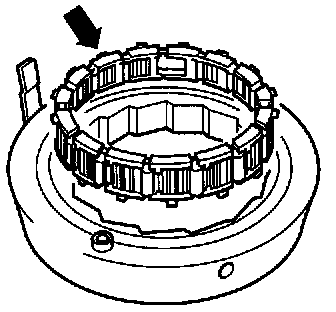

Fig. 2 Cage With Springs And Rollers, Installing
- Install with large lugs -arrow- facing up.

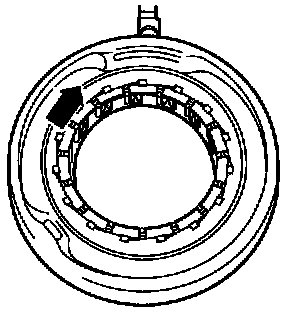

Fig. 3 Cage, Securing
- Secure cage by turning in direction of arrow as far as stop.

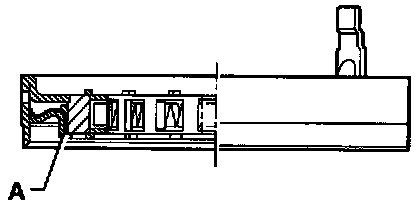

Fig. 4 Piston, Installing
- Insert piston -a- as shown.
