Generator Warning Lamp Does Not Light Up

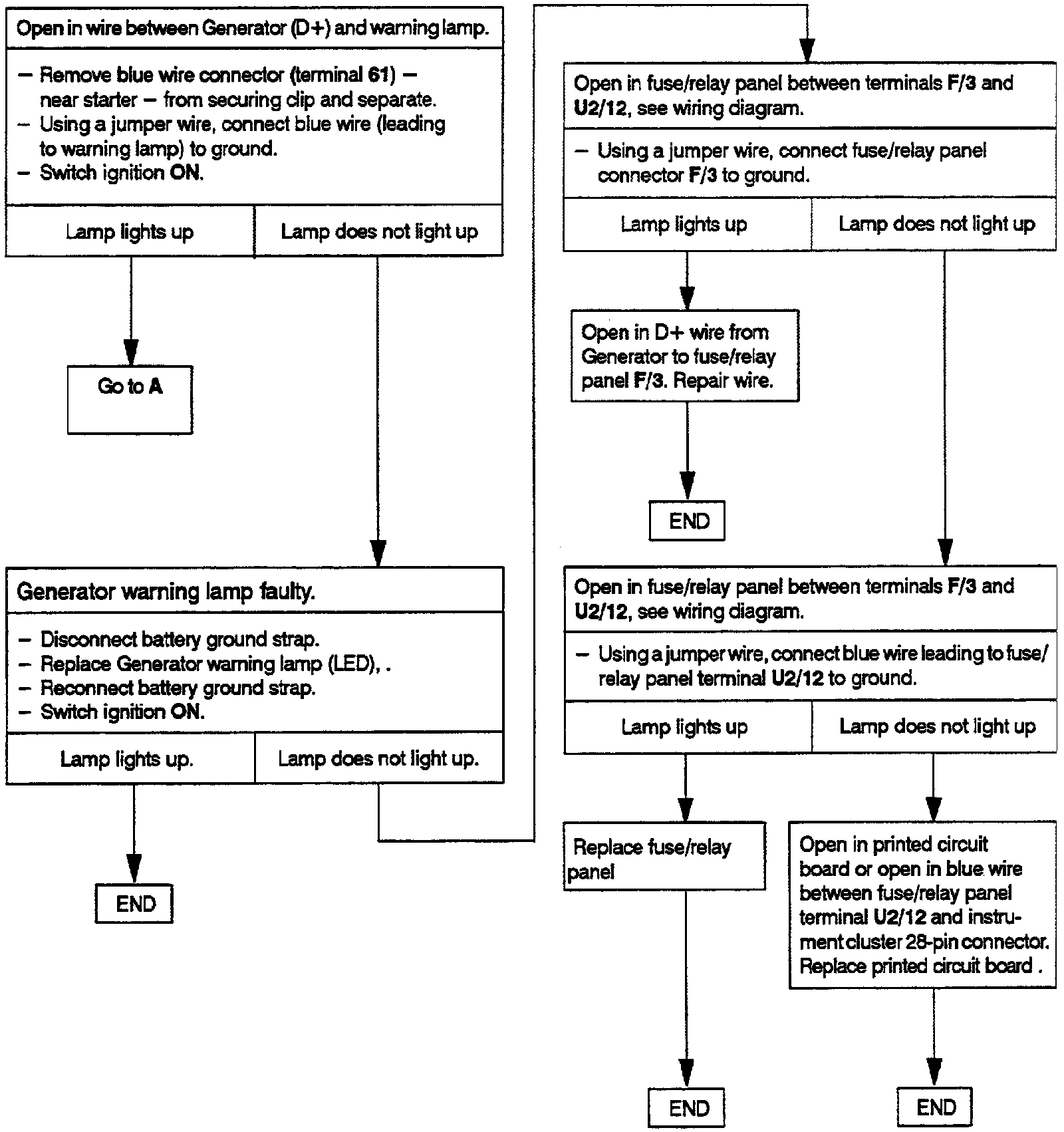

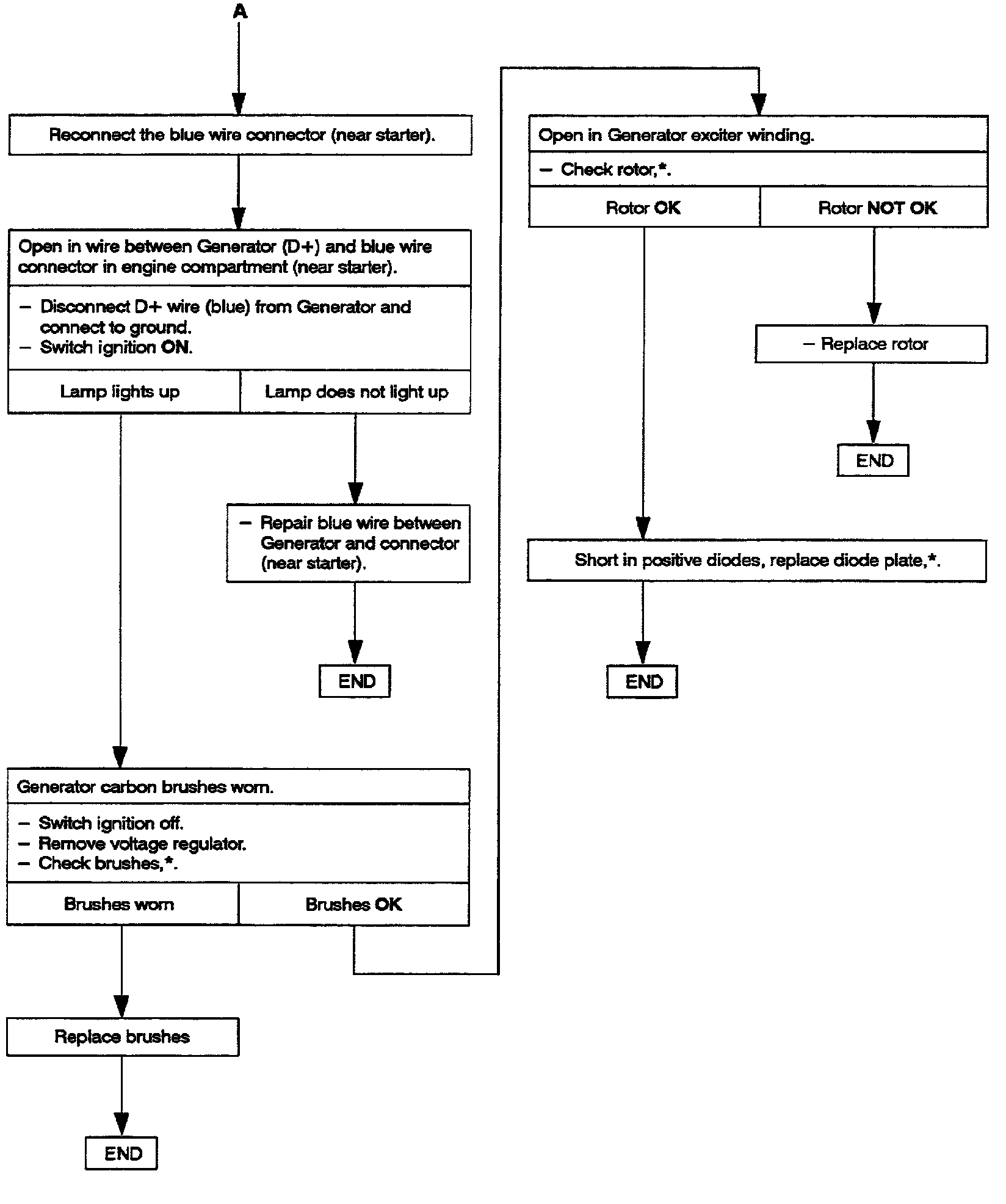

Troubleshooting - Generator Warning Lamp Dose Not Light Up When Ignition Is Switched On:

A - Troubleshooting - Generator Warning Lamp Dose Not Light Up When Ignition Is Switched On:

Test Conditions:
^ Belt tension and battery voltage OK.
^ Ground connections (between engine, body and battery) and generator (GEN) connections must be tight and clean (free of corrosion/oxidation).

NOTE: Use connector test kit VW 1594 for all electrical tests.
