Camshaft Identification And Valve Timing Specifications

Camshaft Valve Timing
- Item 1 = Camshaft for cylinders 1, 3 and 5
- Item 2 = Camshaft for cylinders 2, 4 and 6

Identification





- Cam base diameter: a = 34 mm

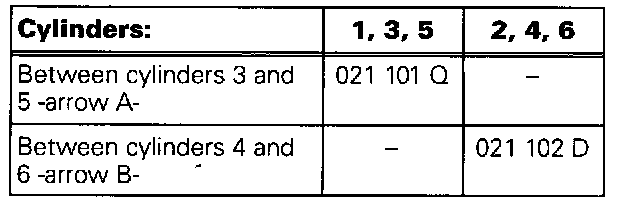

- Identification by numbers and letters stamped on camshaft

Valve Timing Table (at 1 Mm Valve Lift)

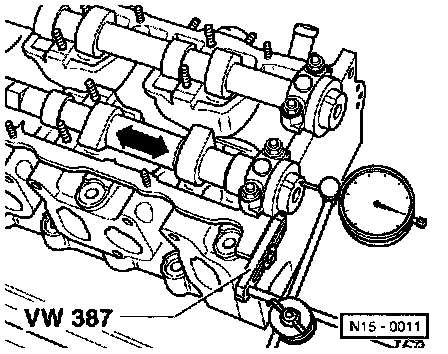

Axial Clearance





Specification: Wear Limit 0.15 mm
