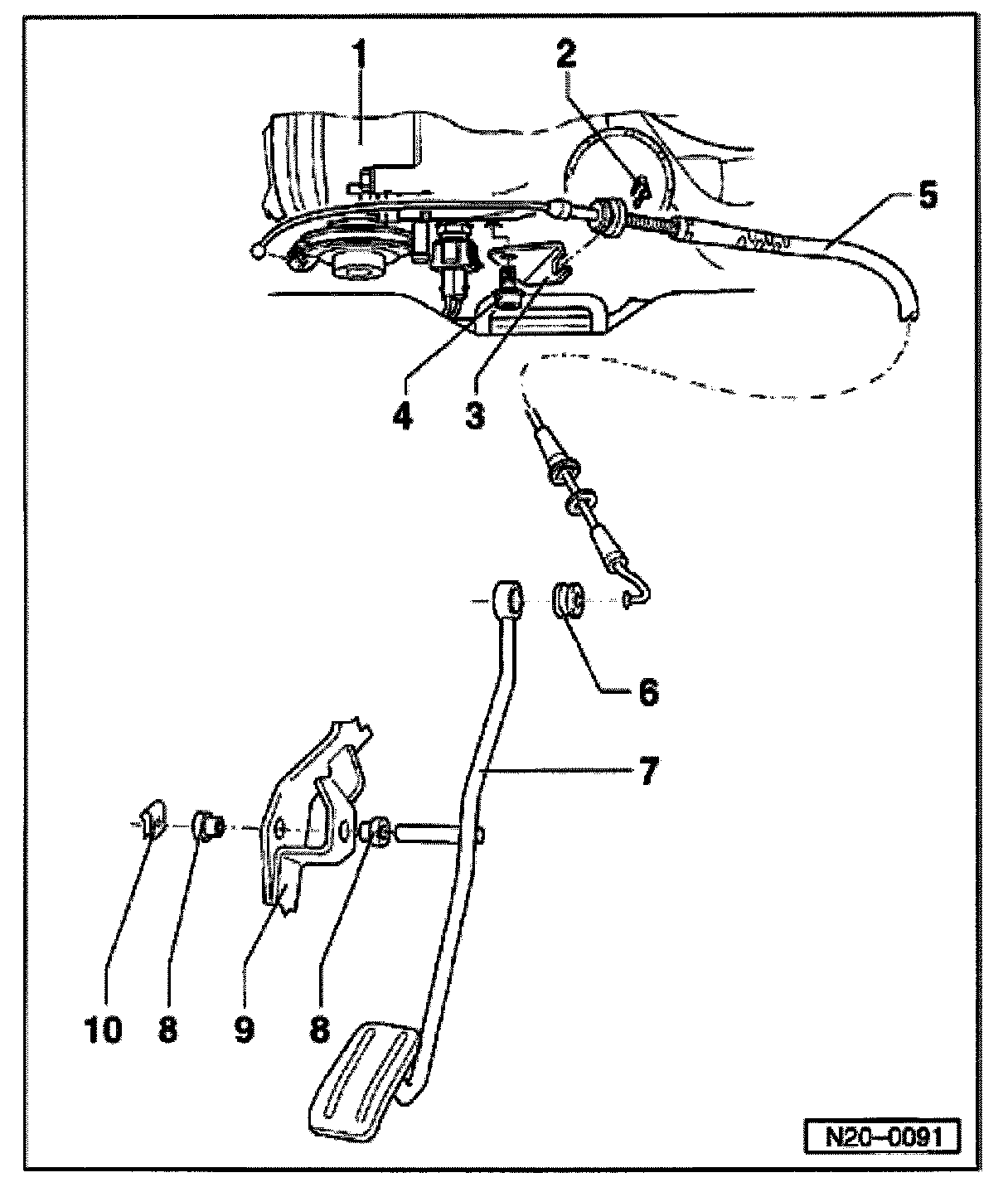

Accelerator Mechanism, Servicing

1 - Throttle Valve Control Module -J338-
2 - Tab
3 - Support bracket
- For accelerator cable
4 - 25 Nm (18 ft lb)
5 - Accelerator cable
- Removing:
- Disconnect accelerator cable at accelerator pedal bracket. Support bracket and Throttle Valve Control Module. Break off spreader clips (in vehicle interior) and pass accelerator cable through to engine compartment.
- Do not re-use damaged accelerator cable, ALWAYS replace.
6 - Rubber bushing
7 - Accelerator pedal
8 - Bushing
9 - Accelerator pedal bracket
10 - Circlip
