Functional Check

EVAP Canister, Checking For Leaks

Special tools and equipment
- VAG 1551/1552 Scan Tool with adaptor cable VAG 1551/3

Test conditions:

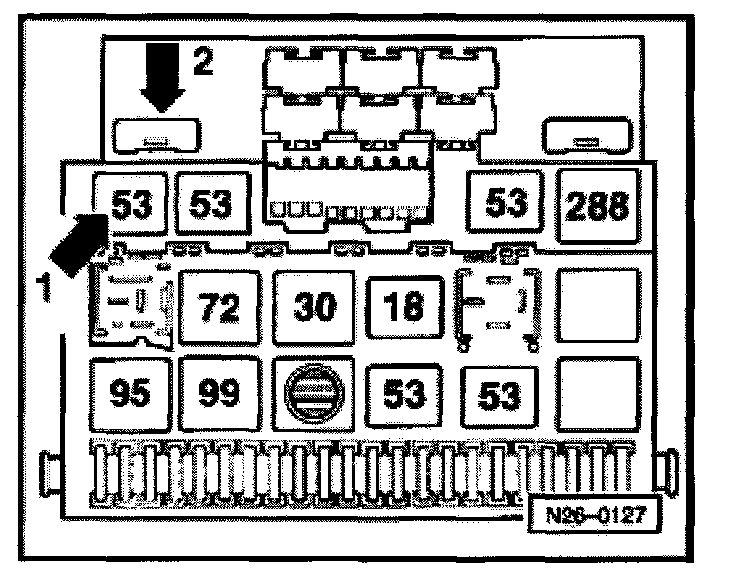

- Fuse 29 OK.
- No DTCs stored in memory
- All electrical consumers such as A/C, lights and rear window heating switched off.
- Intake air temperature less than 90 °C (195 °F) See display group 007, display field 4
- Coolant temperature less than 95 °C (203 °F) See display group 007, display field 3
- Throttle in closed position See display group 005, display field 4

Functional check
- Connect VAG 1551/1552 Scan Tool
- Start engine
- Press -0- and -1 - buttons to select Address Word 01 "Engine electronics"

Display will appear as shown


Rapid data transfer HELP
Select function XX


- Press -0- and -4- buttons to select Function 04: "Basic setting"
- Press -Q- button to confirm input.

Display will appear as shown


Basic setting HELP
Input display group number XXX


- Press -1-, -5- and -3- buttons to select "Display group 153".
- Press -Q- button to enter input.

Display will appear as shown


Basic setting 153 ->
1 2 3 4

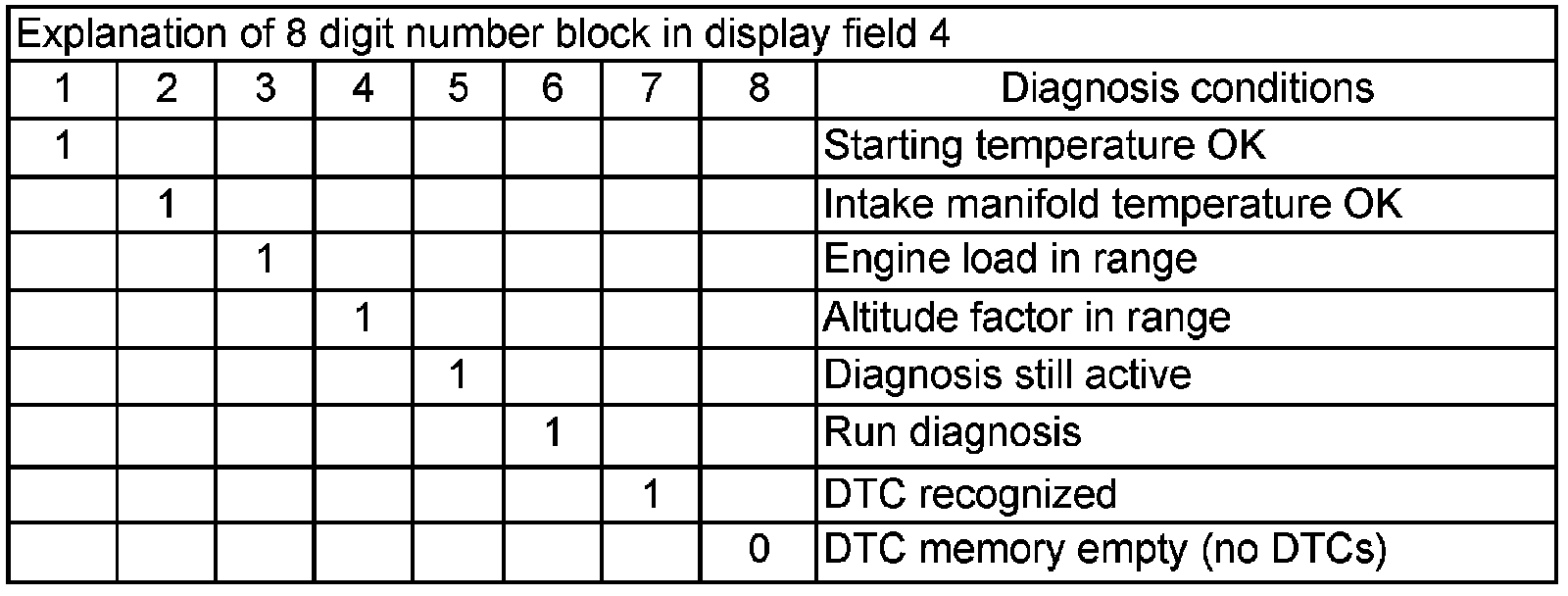

- Check display in field 4:

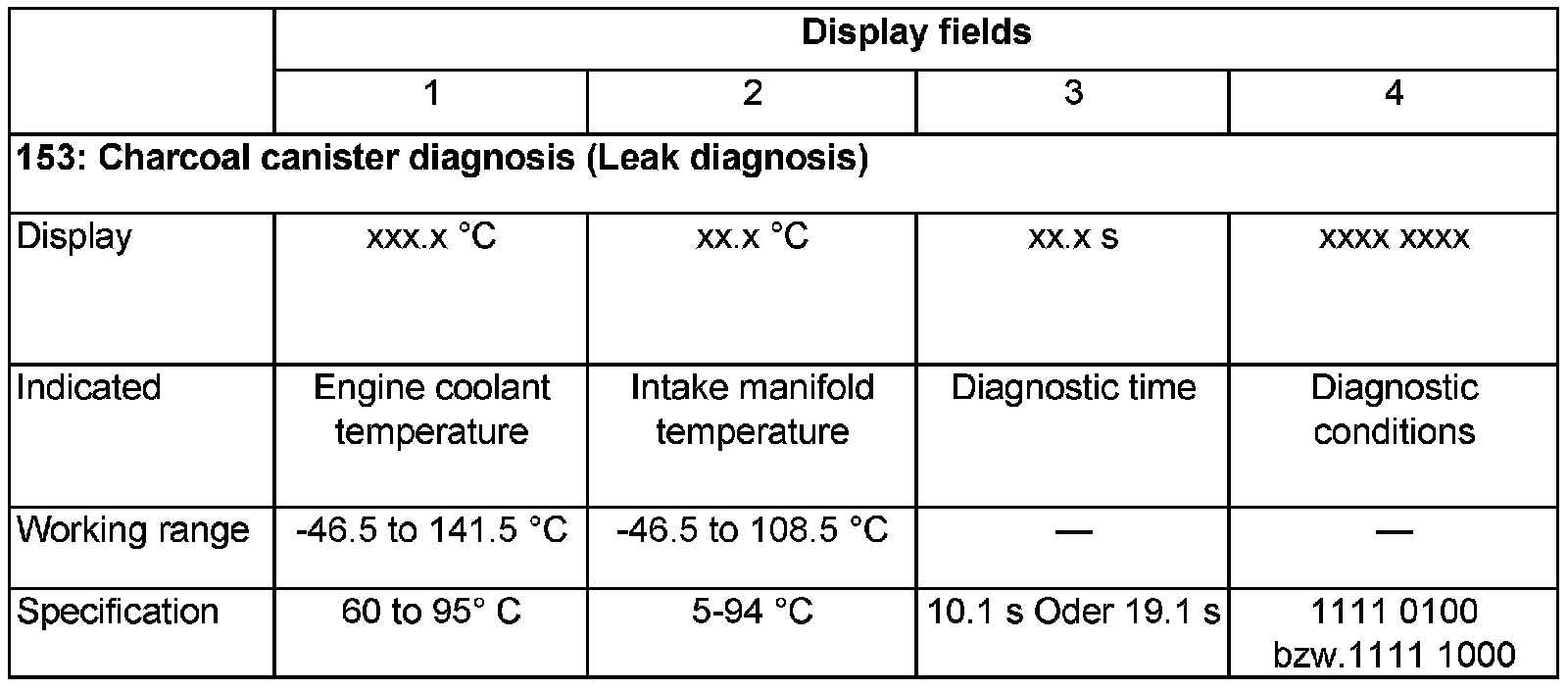

Display Field 153:

Note (for display field 3):
- If specification in display field 3 are not obtained: Check DTC memory and erase.
- Specification shows diagnosis time for 10 or 19 seconds.
- If value displayed us less than 10 seconds, the Leak Detection Pump(LDP) -V1444- is activated too often and the Engine Control Module detects a leak. Check DTC memory and erase.
