Coolant Fan Control Relay With Air Conditioning or Climatronic

Component location: in engine compartment, left front

Coolant Fan Control Relay, For Vehicles With Air Conditioning Or Climatronic:

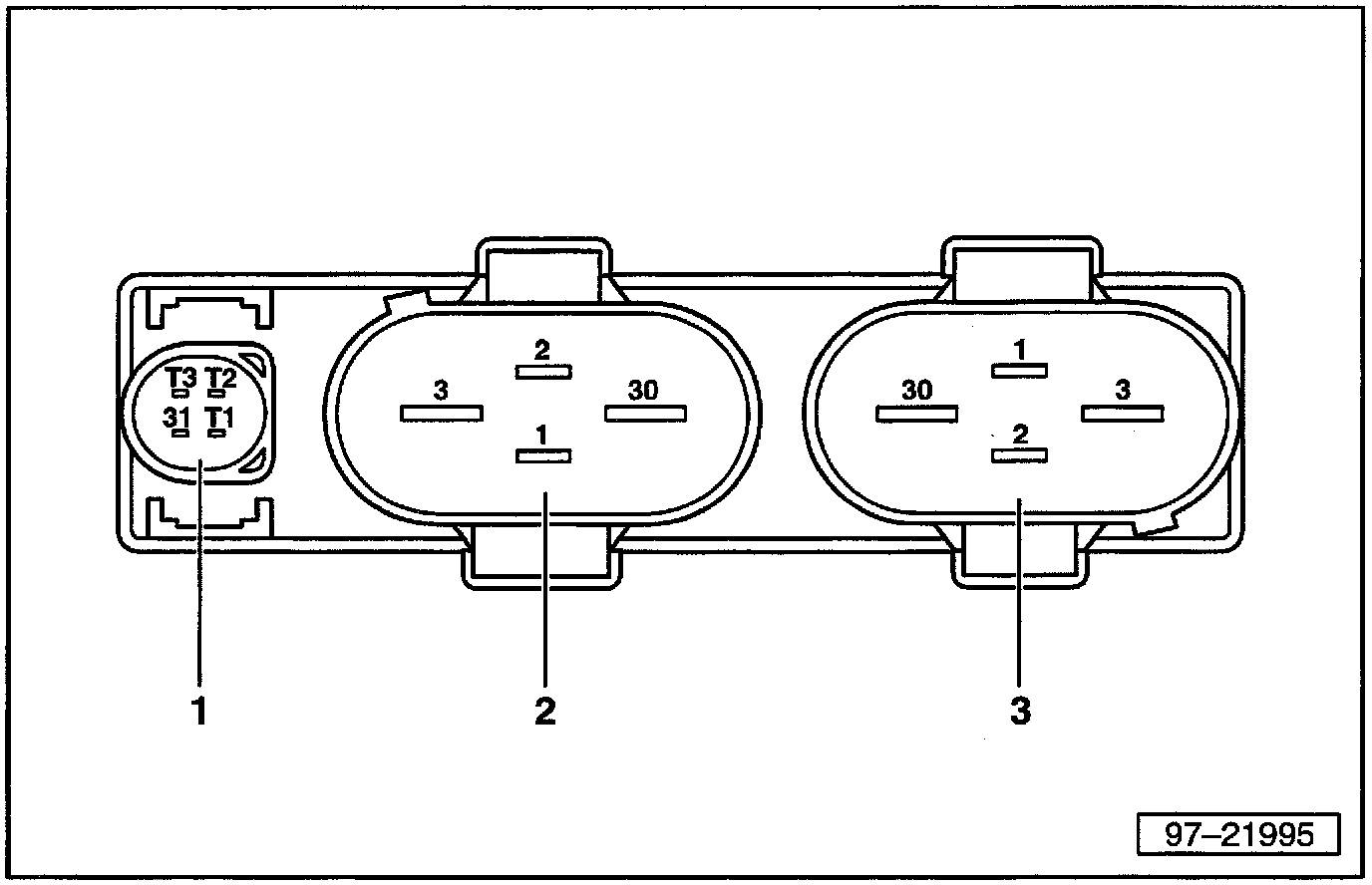

Connectors for vehicles with Air conditioning:

Connector 3:
3=T4d/1
2=T4d/2
1=T4d/3
30=T4d/4

Connector 2:
3=T4d/1
2=T4d/2
1=T4d/3
30=T4d/4

Connector 1:
T1=T4c/1
T2=T4c/2
31=T4c/3
T3=T4c/4

Connector for vehicle with climatronic:

Connector 3:
3=T4d/1
2=T4d/2
1=T4d/3
30=T4d/4

Connector 2:
3=T4d/1
2=T4d/2
1=T4d/3
30=T4d/4

Connector 1:
T1=T4c/1
T2=T4c/2
31=T4c/3
T3=T4c/4
