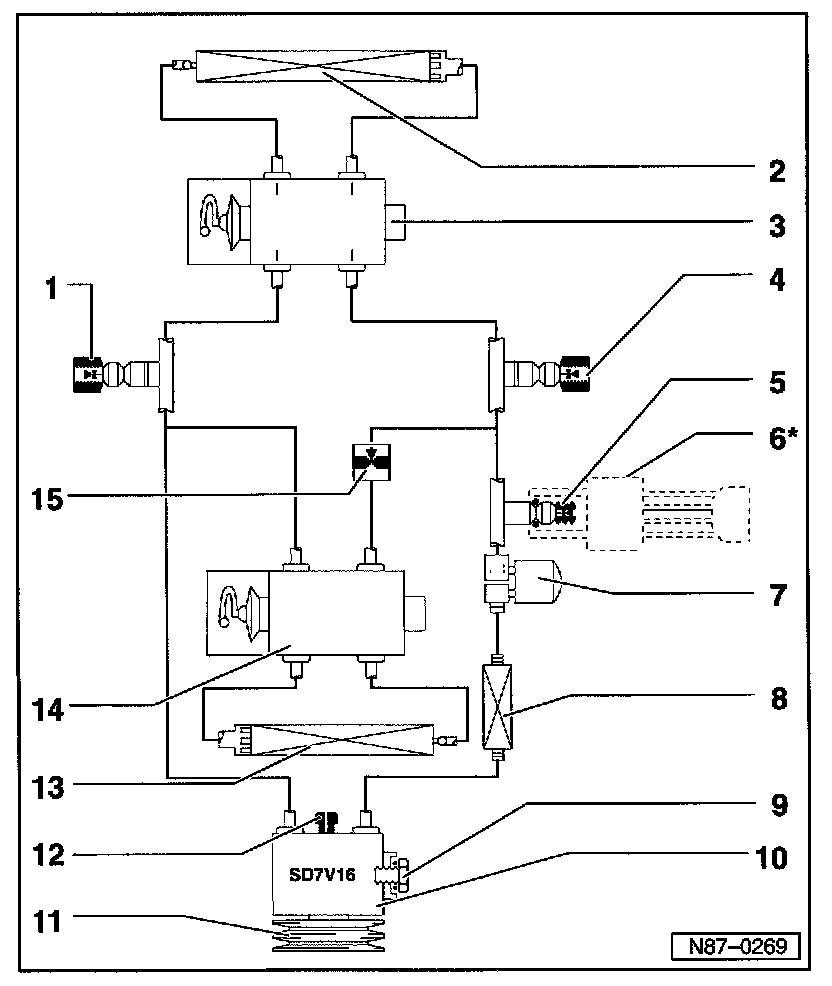

A/C Refrigerant Circuit

NOTE: Illustration shows Climatronic refrigerant circuit with second evaporator


1 - Low pressure service valve
- For charging/discharging
2 - Evaporator
3 - Expansion valve
- In engine compartment, right
4 - High pressure service valve
- For charging/discharging
5 - Connector with valve
- For A/C pressure switch -F129-
6 - A/C pressure switch -F129-
- Can be removed/installed without discharging system
7 - Receiver drier
8 - Condenser
9 - Oil fill/drain plug
10 - A/C compressor
11 - A/C clutch -N25-
12 - Pressure relief valve
13 - Second evaporator (rear)*
14 - Expansion valve for second evaporator*
15 - NC refrigerant shut-off valve -N43-*

* Where applicable
