Center Air Outlet, Removing and Installing

Center Air Outlet, Removing And Installing







Removing:

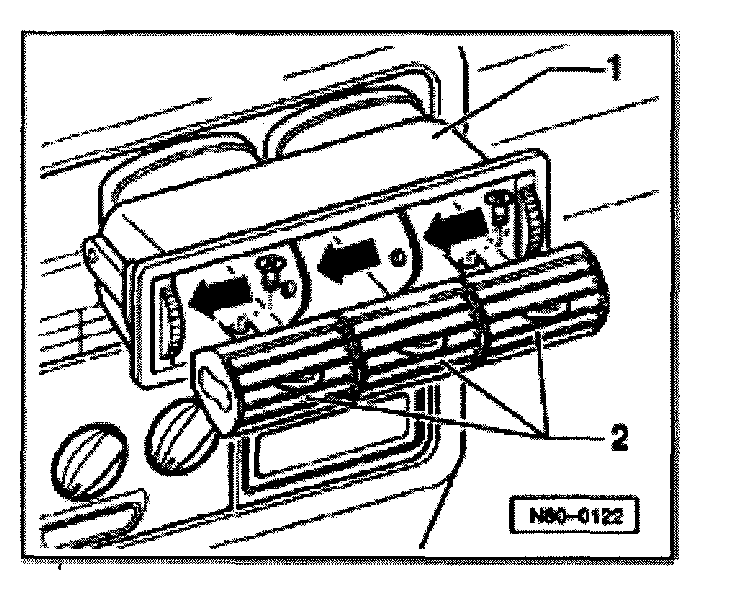

- Carefully pull grille -2- out with needle nose pliers.
- Remove screws.
- Remove vent housing -1-.

Installing
Install in reverse order, noting the following:







- First locate grille -2- on the left guide lug of housing -1-.
- Carefully press in vent until locating tabs engage.
