Air Outlets, Removing and Installing

Air Outlets, Removing And Installing







Removing:

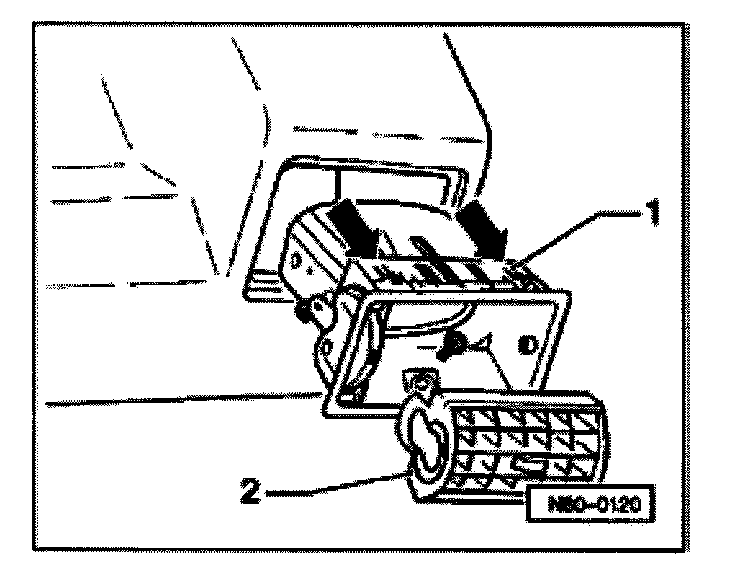

- Carefully pull grill -2- out with needle nose pliers.
- Remove screw.
- With a small screwdriver, release locking tabs -arrows- from grille opening while gently pulling on housing -1-.

Installing:
Install in reverse order, noting the following:







- First locate grille -2- on the left guide lug of housing -1-.
- Carefully press in vent until locating tabs engage.
