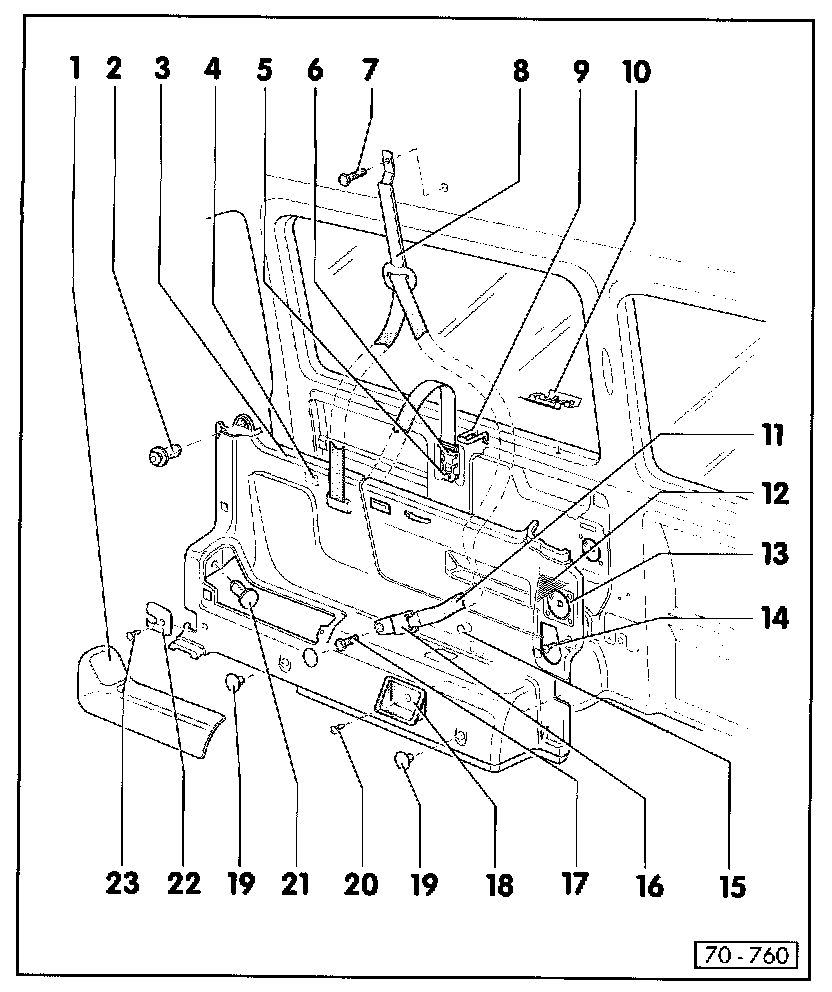

(Left), Components

NOTE:
- Removal description is given for one side, opposite side is mirror image.
- Depending on equipment installed, remove seats and/or seat benches See 'Body And Frame, Seats.' Service and Repair , for storage area See 'Accessory Compartment.'
- To remove rear side panel molded trim, remove rear headliner trim, left upper B-pillar trim, left C-pillar trim, D-pillar trim, loosen rear edge cover on both sides. See 'Body And Frame, Interior Trim.'






1 - Cover
2 - Clip
- Two-piece
- Removing: inner section requires an Allen wrench.
- Installing: Press outer and inner pant into hole simultaneously.
3 - Rear side panel molded trim
- Removing/Installing See 'Trim Panel.' Service and Repair
4 - Clip
- On back
- Several located along the window edge
5 - Hex bolt
- 40 Nm (30 ft. lb)
6 - Automatic tensioning seat belt retractor
7 - Hex bolt
- 40 Nm (30 ft. lb)
8 - D-ring for seat belt
- Can be taken off with two-piece trim
9 - Three-place bench seat belt anchor point
10 - Spring clip
11 - Seat belt
12 - Speaker cover
13 - Speaker with connector
14 - Phillips screw
15 - Spacer
16 - Belt anchor
17 - Hex bolt
- 40 Nm (30 ft. lb)
- With cap
18 - Belt guide with closure strips
19 - Trim plug
20 - Phillips screw
21 - Trim plug
22 - Guide cover
23 - Phillips screw
