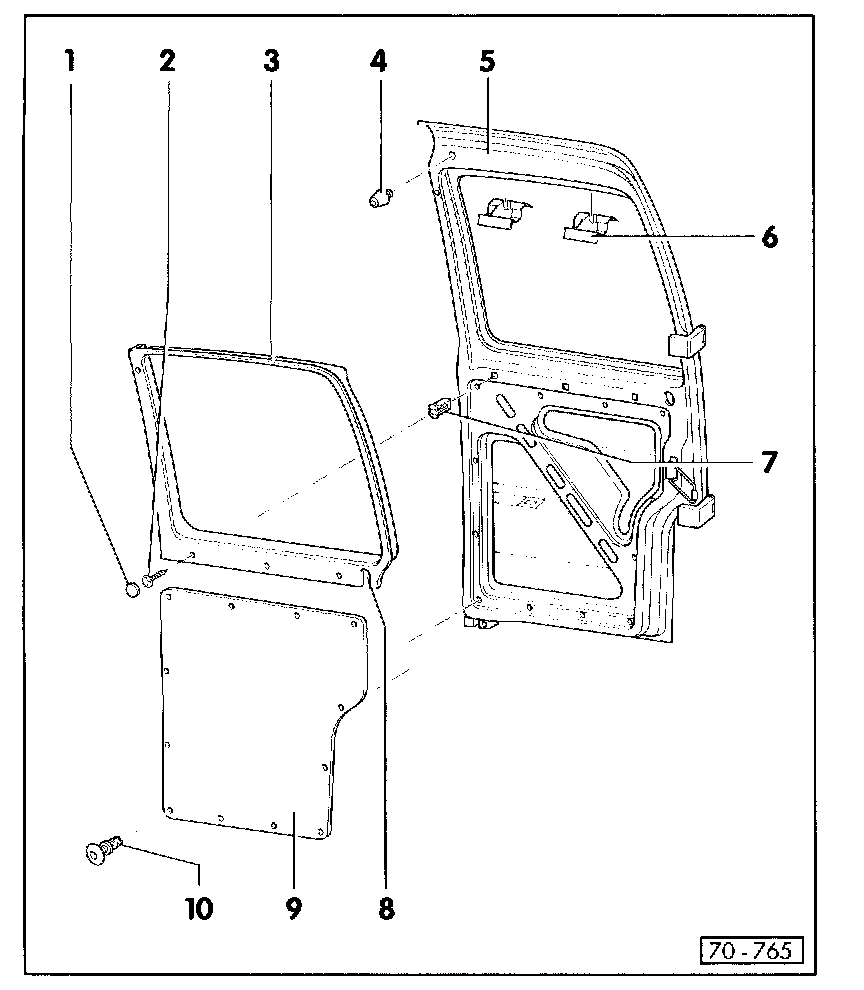

(Left), Components
1 - Cap
2 - Phillips screw
3 - Window frame trim
4 - Door stop
5 - Rear double door (left)
6 - Spring clip
7 - Expanding nut
8 - Cutout for electrical connectors
9 - Trim panel
10 - Clip
- Two-piece
- Removing: Remove inner part with Allen wrench
- Installing: Press outer and inner parts in holes on trim panel -9- simultaneously
