Wall Cupboard, Removing

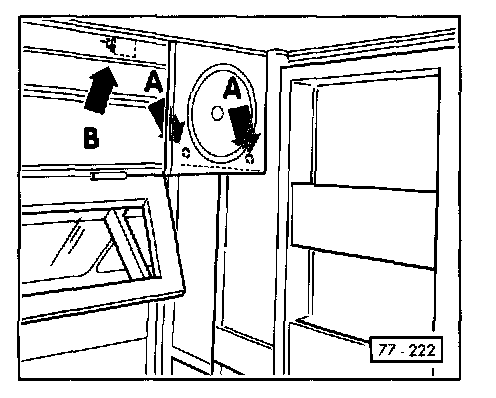

- From inside clothes closet, pry off two caps (if applicable), remove hex nuts and press saucer-head screws -arrows- through into wall cupboard.
- Loosen screw connection to bed board -arrow B-.

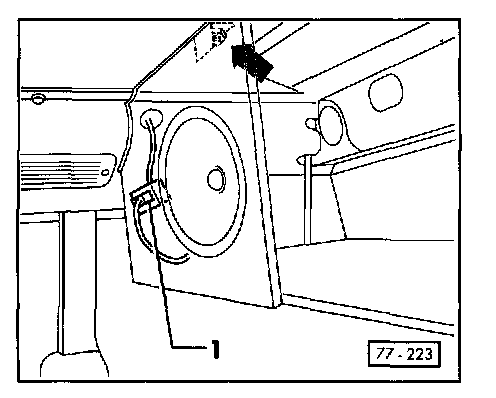

- Disconnect speaker cable connectors -1-.
- Loosen screw -arrow- to bedboard.

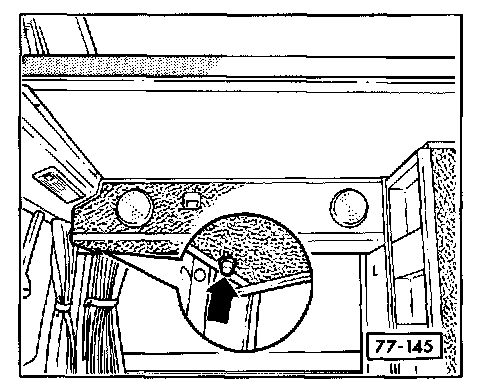

- Pry off cap -arrow-, remove hex nut and remove wall cupboard.
