Procedures

- Remove sliding door molded trim and/or remove lower sliding door trim.

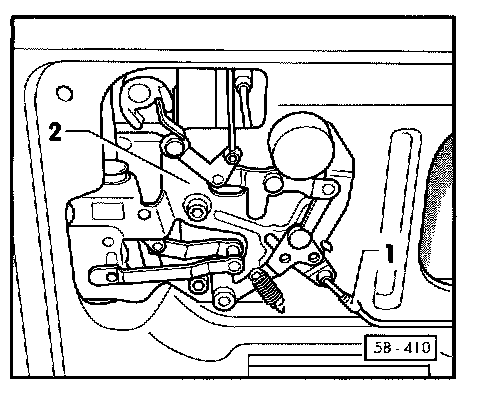

- Disconnect pull rod -1- from remote control lock -2-.

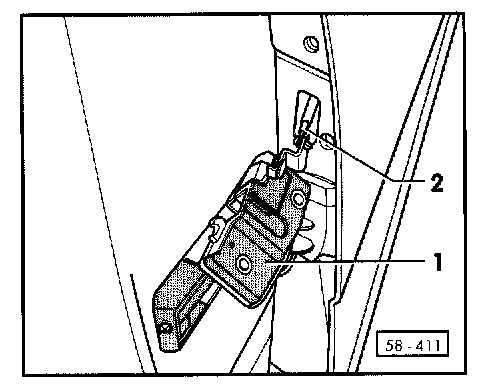

- Remove remote control lock -1- by removing Phillips screws and disconnecting pull rod -2- at remote control.
Tightening torque:
Phillips screw = 19 Nm (14 ft lb)
