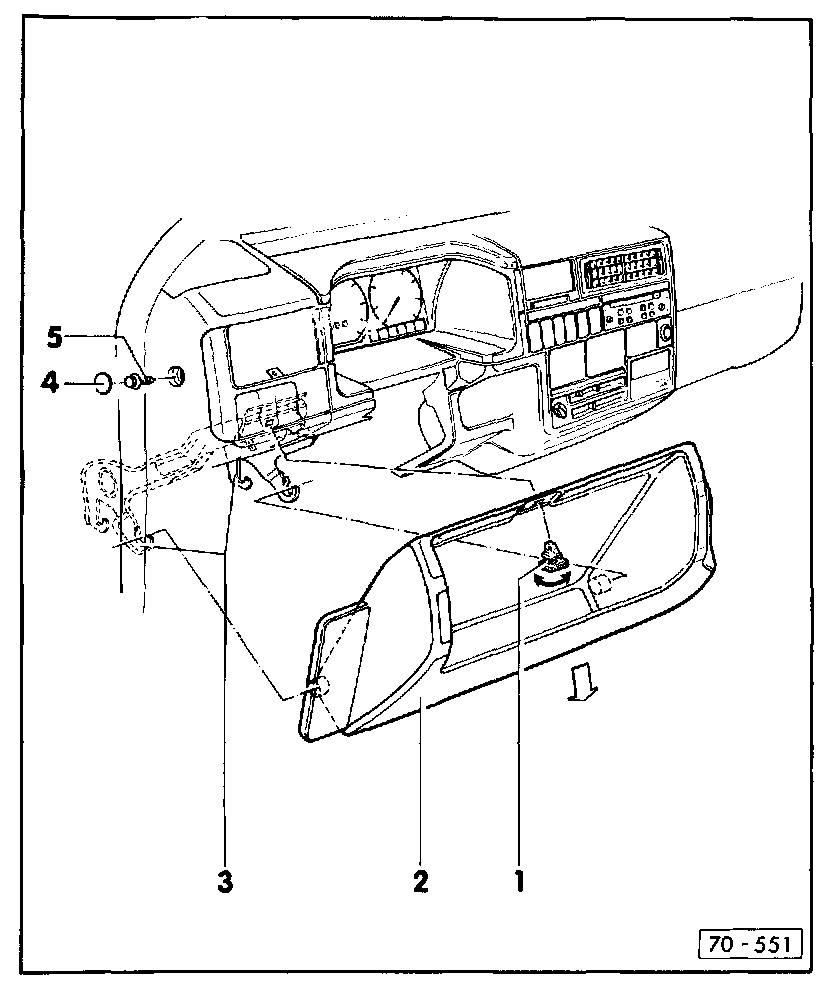

Storage Tray, Removing

NOTE: Storage tray also is fuse/relay panel cover.


- Turn fitting -1- (90°).
- Fold down storage tray -2- and pull from brackets -3-.
- Remove cap -4-, screw, and washer assembly -5- (only when removing complete instrument panel).
