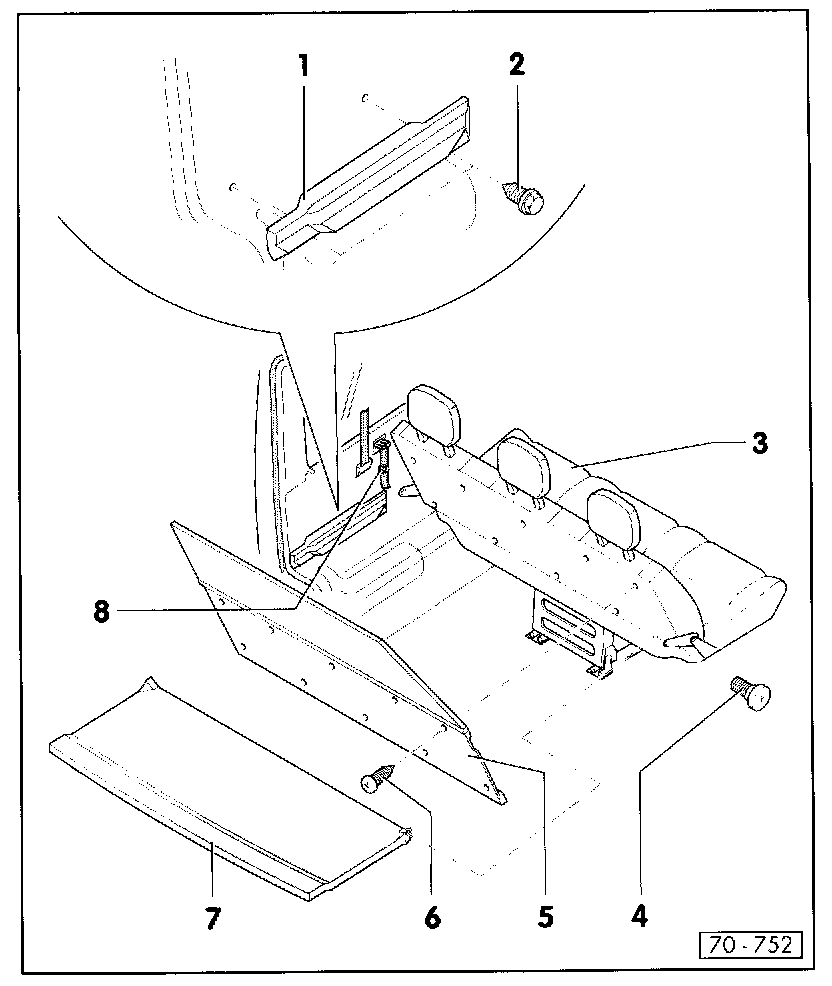

Storage Area, Removing

1 - Base
- Removing: Loosen hex screws -2-, if necessary, disconnect electrical connector for storage area lights
2 - Hex screw
- 18 Nm (13 ft lb)
3 - Bench seat (three place)
4 - Fillister head tapping screw
- 14 Nm (10 ft lb)
5 - Front part of storage area
- Removing: remove Phillips screws -6-
6 - Phillips screws
7 - Rear storage area
- Removing:
- Remove full bench seat I bed See 'Body And Frame, Seats.' Service and Repair
- Remove screws -4-.
8 - Stop strap
- Only on left mounting point for back of full bench seat
