System Diagram (from 07/2011)

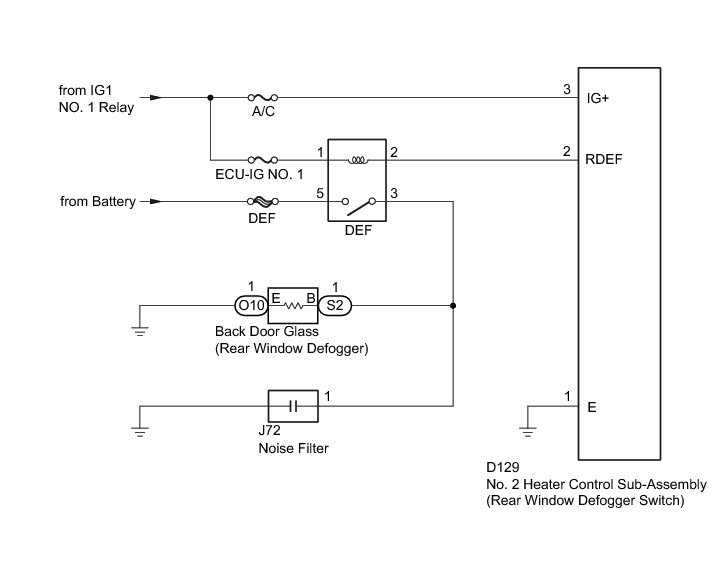

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM (for Hatchback): SYSTEM DIAGRAM
