Components (from 07/2011)

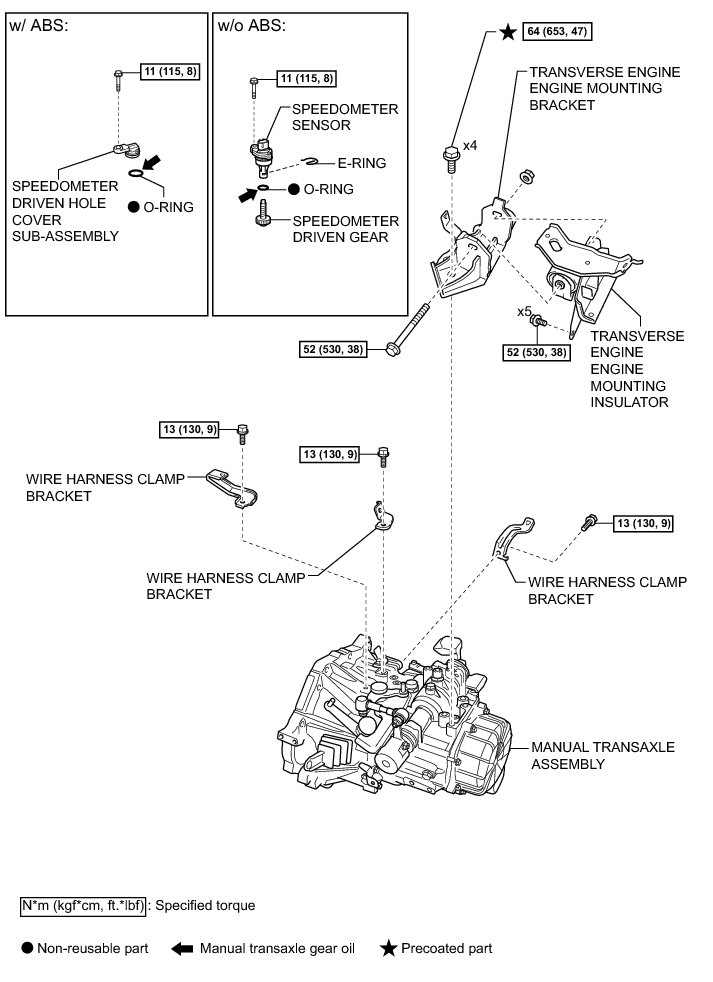

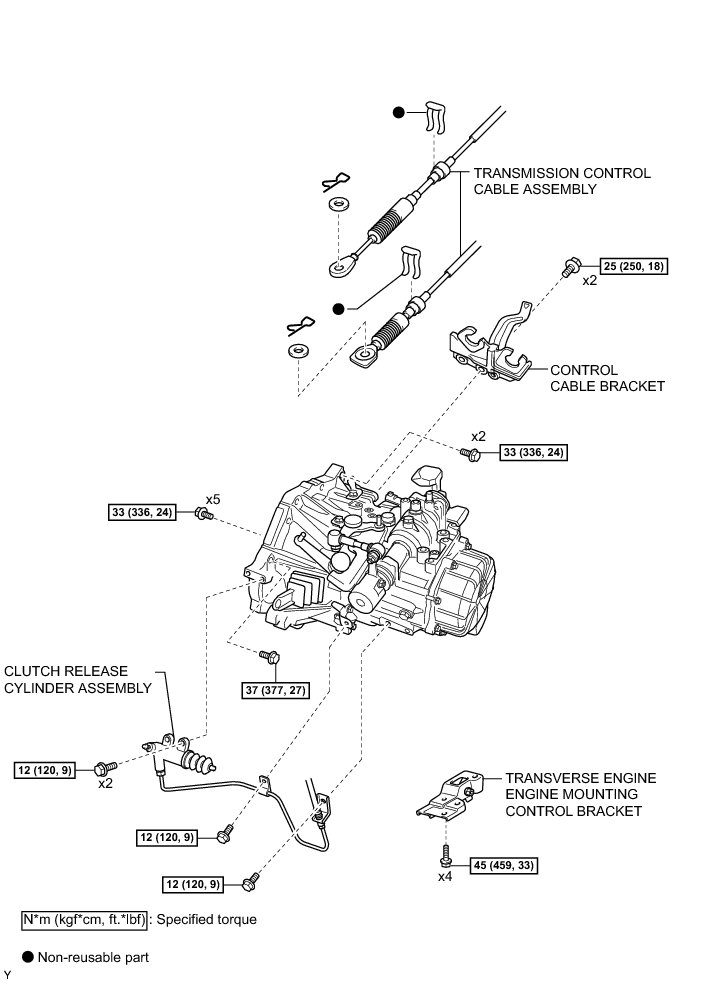

C50 MANUAL TRANSMISSION / TRANSAXLE: MANUAL TRANSAXLE ASSEMBLY (for Hatchback): COMPONENTS
