Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Overhaul >> Shift And Select Lever Shaft (for Hatchback) >> Components (from 07/2011)

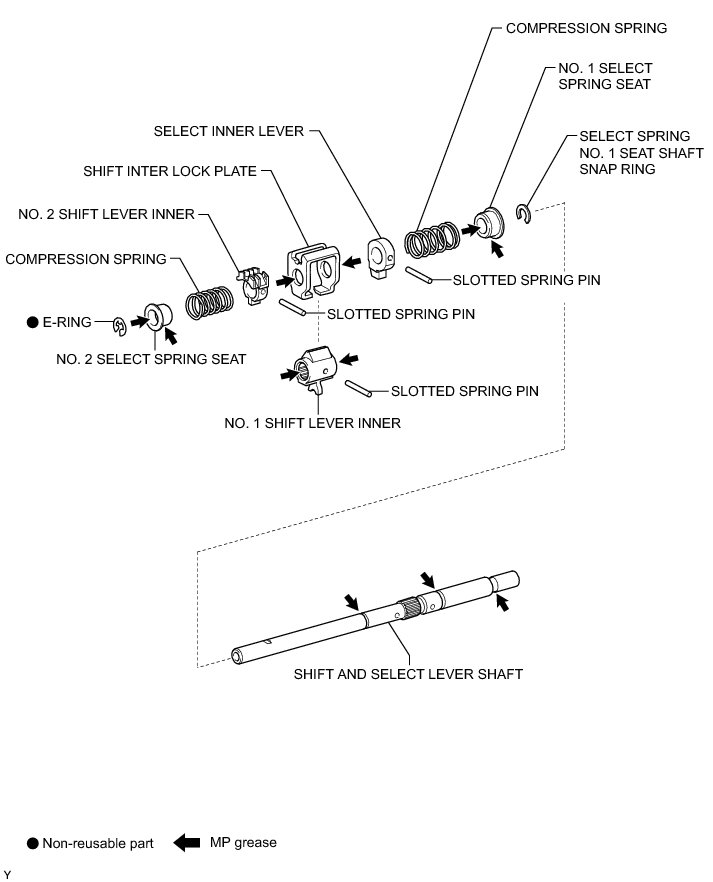

Components (from 07/2011)





C50 MANUAL TRANSMISSION / TRANSAXLE: SHIFT AND SELECT LEVER SHAFT (for Hatchback): COMPONENTS
