Components (from 07/2011)

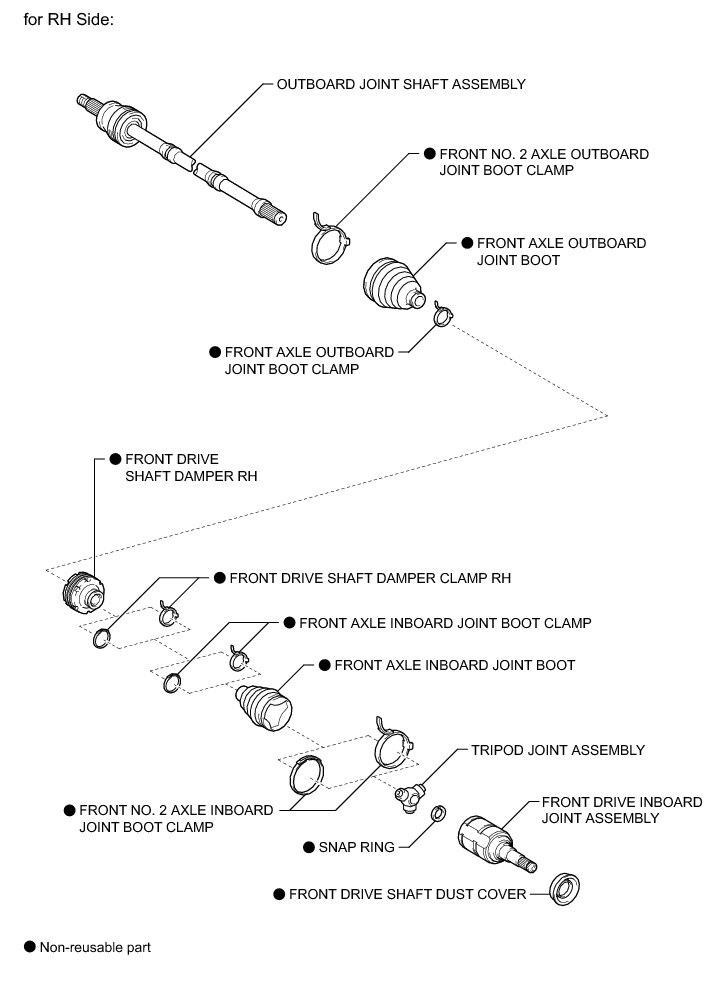

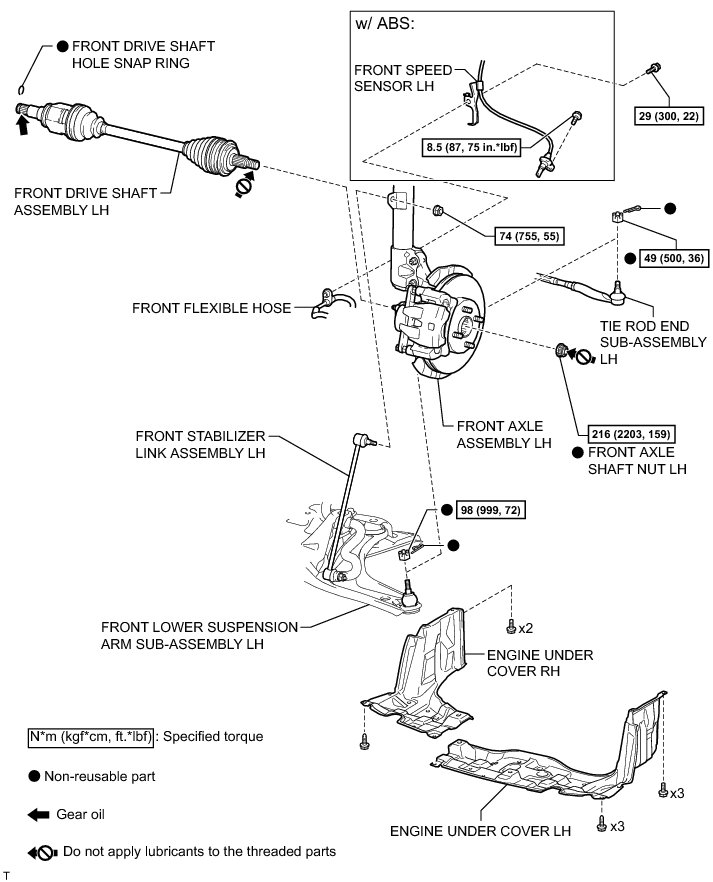

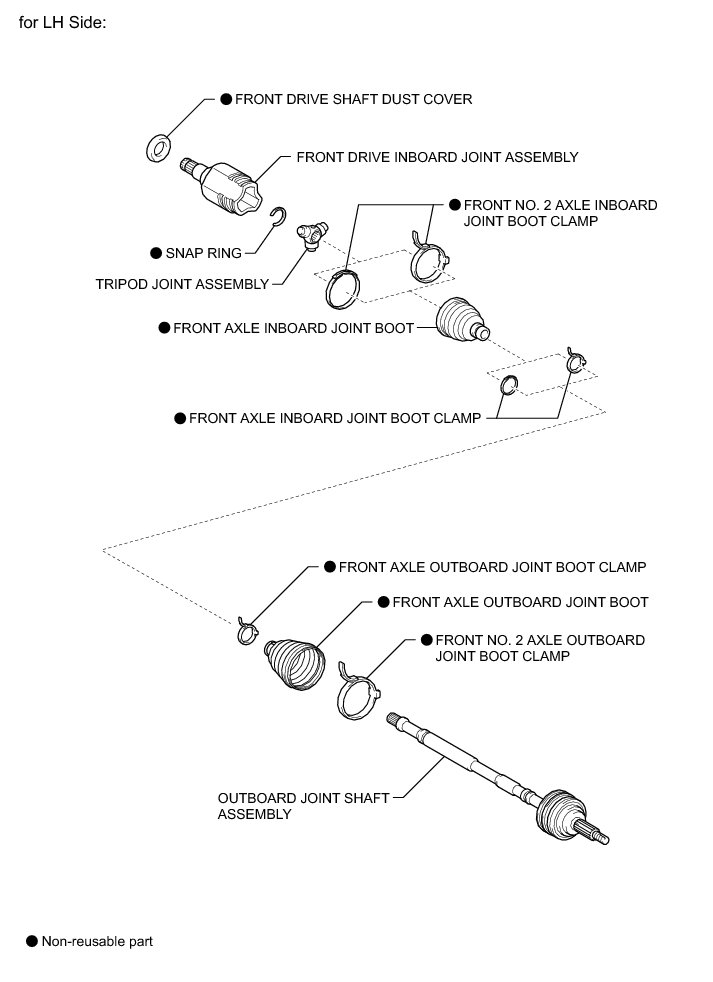

DRIVE SHAFT / PROPELLER SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for Hatchback): COMPONENTS
