Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Service and Repair >> Removal and Replacement >> Components (from 07/2011)

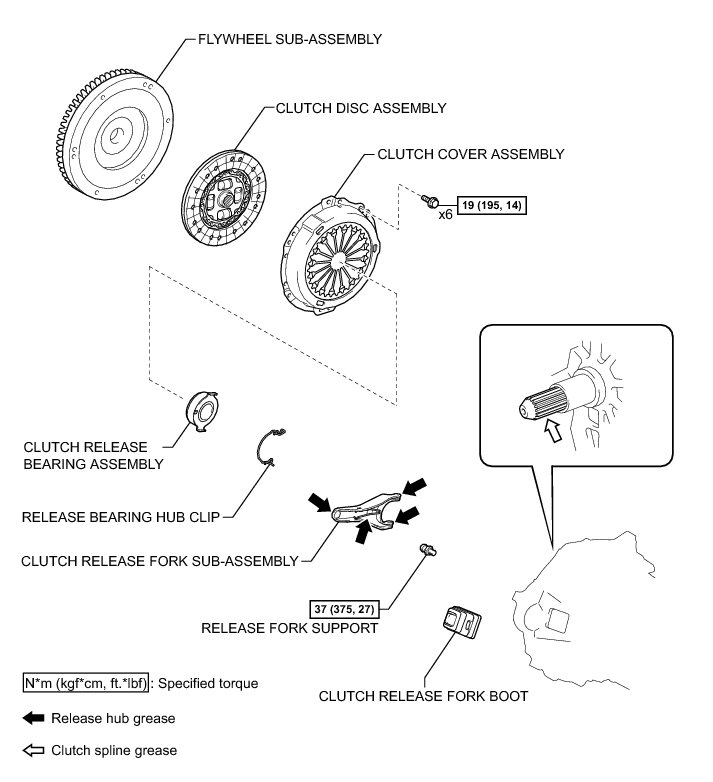

Components (from 07/2011)





CLUTCH: CLUTCH UNIT (for Hatchback): COMPONENTS
