Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Clutch Pedal Assembly >> Service and Repair >> Components (from 07/2011)

Components (from 07/2011)

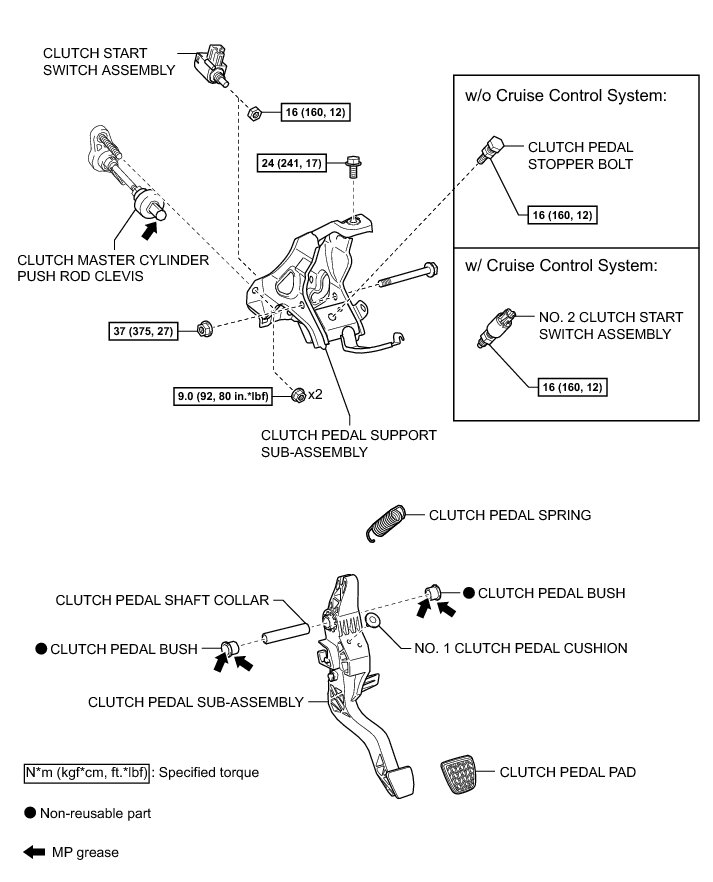

CLUTCH: CLUTCH PEDAL (for Hatchback): COMPONENTS
