Components (from 07/2011)
Components (from 07/2011)

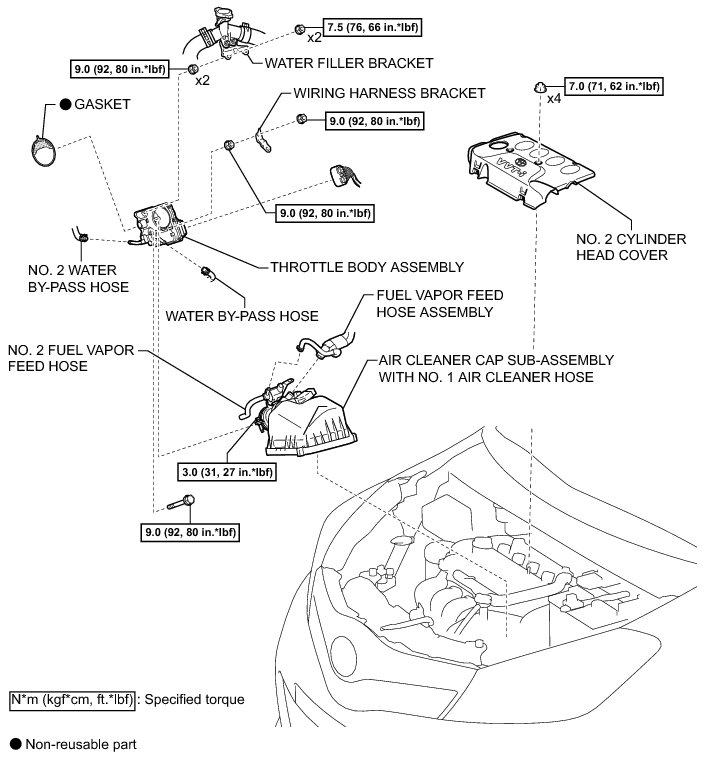

1NZ-FE ENGINE CONTROL:
THROTTLE BODY
(for Hatchback): COMPONENTS
