Components (from 07/2011)
Components (from 07/2011)

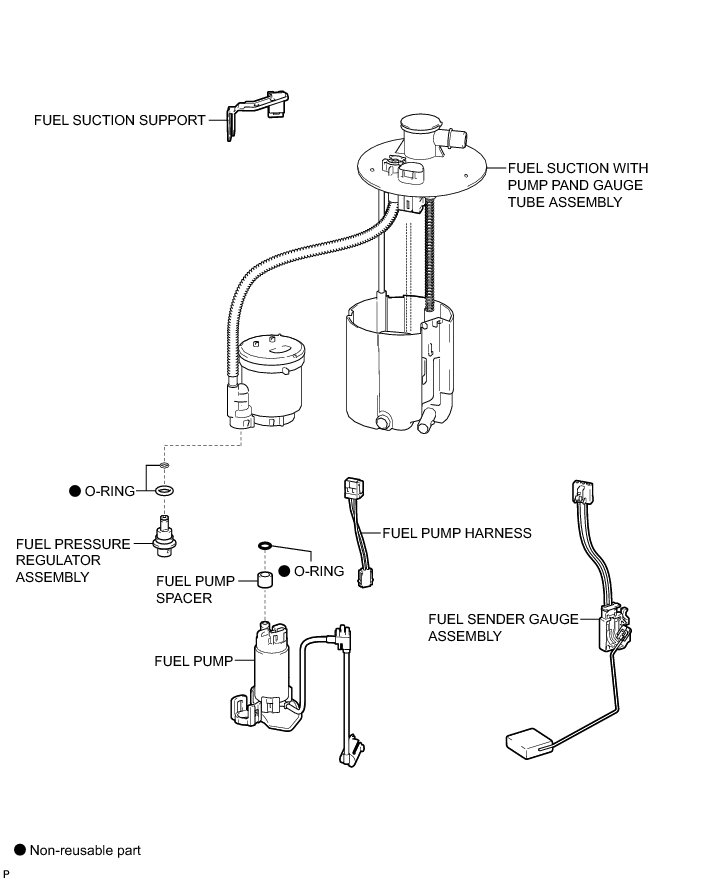

1NZ-FE FUEL: FUEL PRESSURE REGULATOR (for Hatchback): COMPONENTS
