Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Service and Repair >> Components (from 07/2011)

Components (from 07/2011)

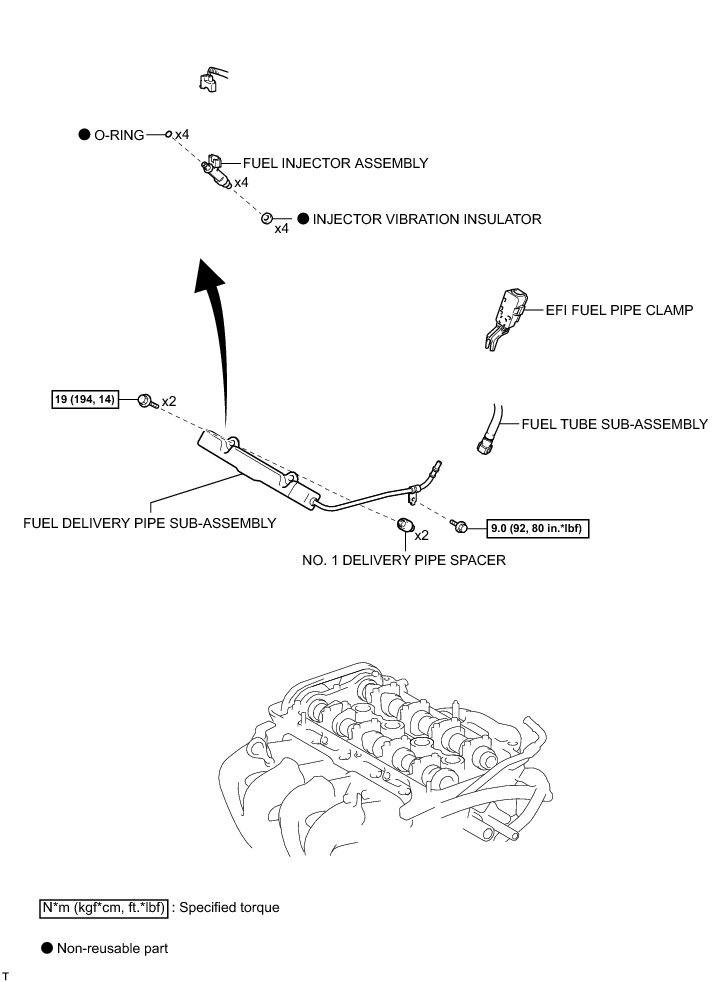

1NZ-FE FUEL: FUEL INJECTOR (for Hatchback): COMPONENTS
