Components (from 07/2011)
Components (from 07/2011)

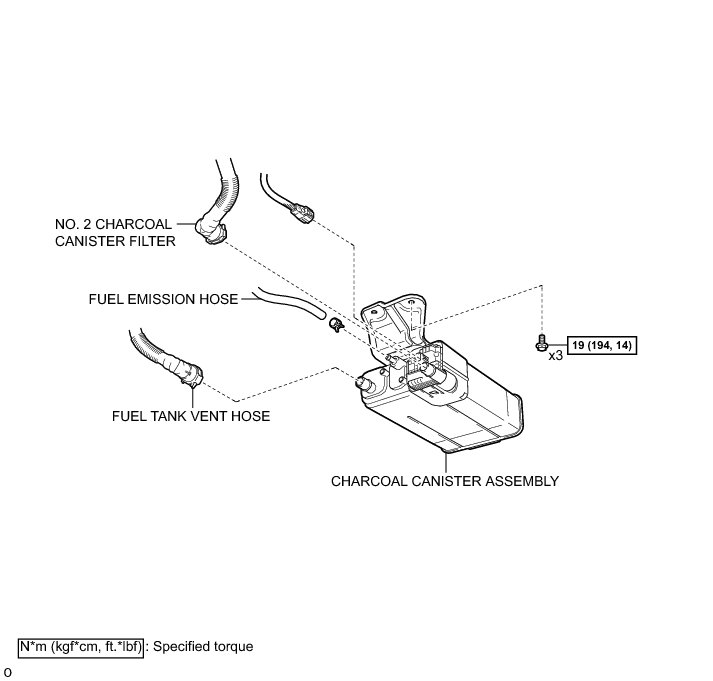

1NZ-FE EMISSION CONTROL: CANISTER (for Hatchback): COMPONENTS
