Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Maintenance >> Wheels and Tires >> Wheel Hub >> Service and Repair >> Front Axle Hub (for Hatchback) >> Components (from 07/2011)

Components (from 07/2011)

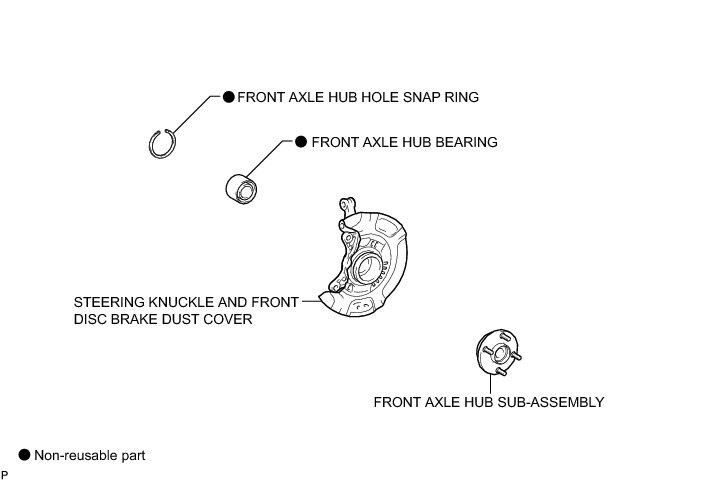

AXLE AND DIFFERENTIAL: FRONT AXLE HUB (for Hatchback): COMPONENTS
