Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Description and Operation

Horn: Description and Operation

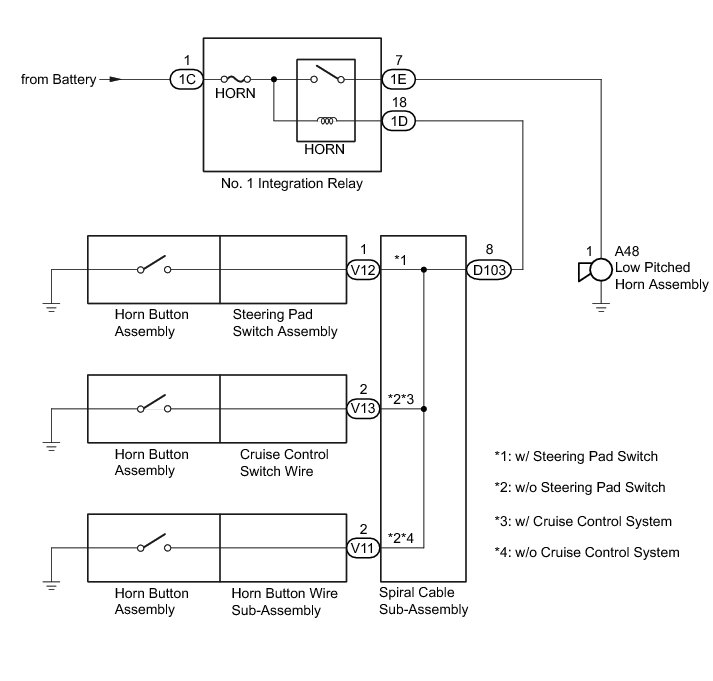

HORN: HORN SYSTEM (for Hatchback): SYSTEM DIAGRAM
