Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser HVAC >> Service and Repair >> Removal and Replacement >> Components (from 07/2011)

Components (from 07/2011)

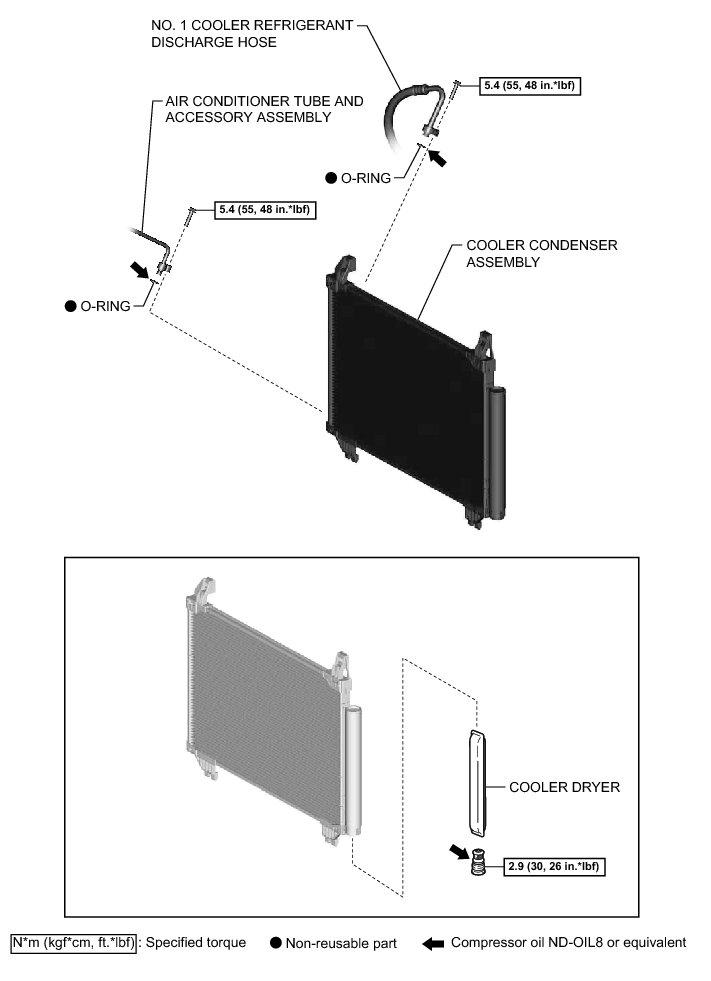

HEATING / AIR CONDITIONING: CONDENSER (for Hatchback): COMPONENTS
