Blower Motor Resistor: Testing and Inspection

HEATING / AIR CONDITIONING: BLOWER RESISTOR (for Hatchback): INSPECTION

1. INSPECT BLOWER RESISTOR

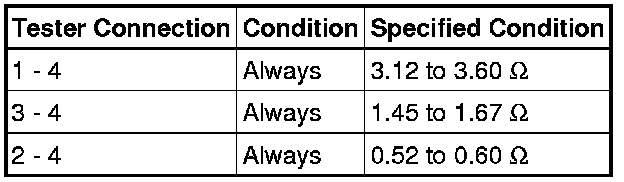

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





* If the result is not as specified, replace the blower resistor.

Text in Illustration
