66 - Fusible Link Block Assembly Inner Circuit
66 - Fusible Link Block Assembly Inner Circuit

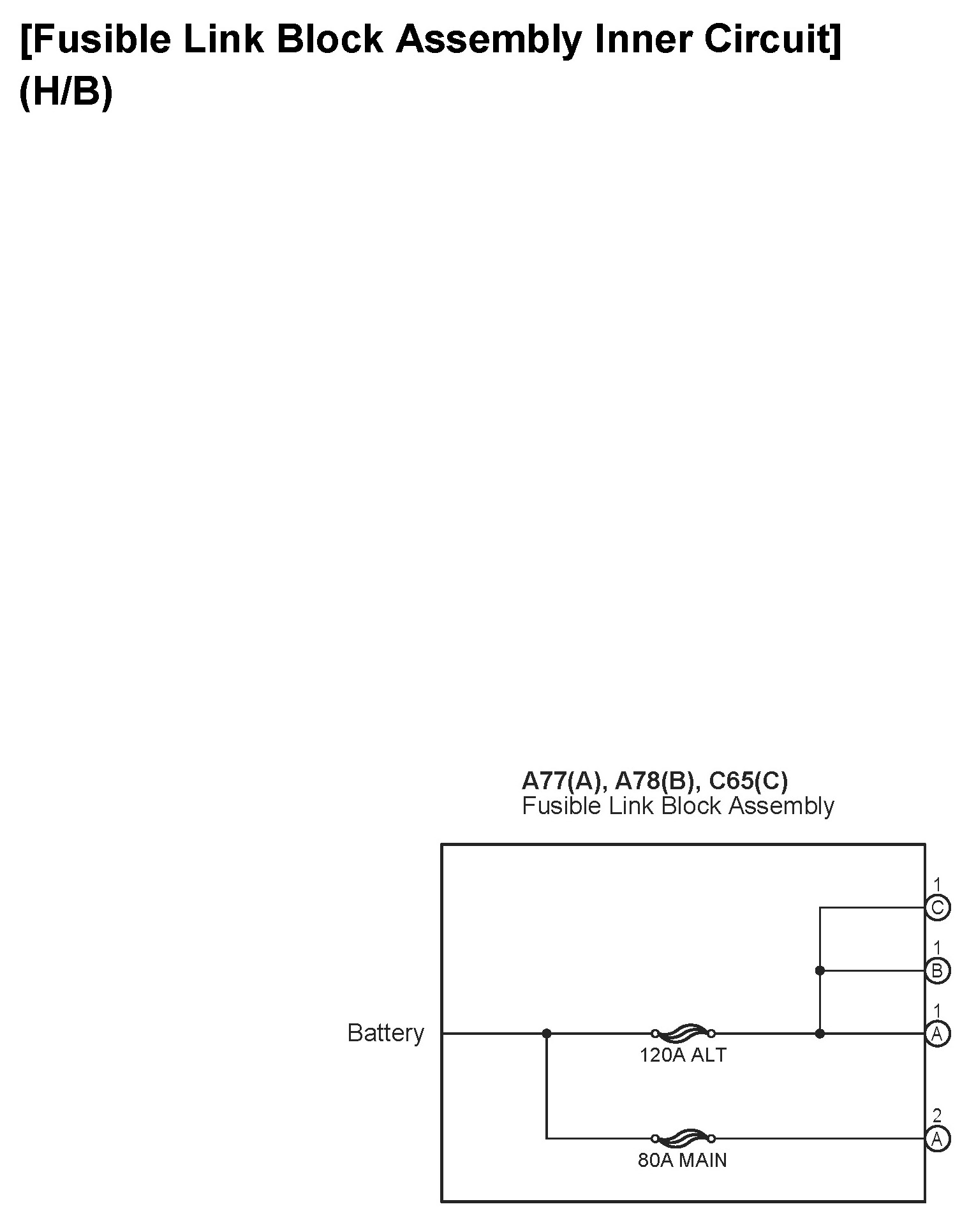

66 - Fusible Link Block Assembly Inner Circuit:
