44-47 - Instrument Panel J/B Inner Circuit

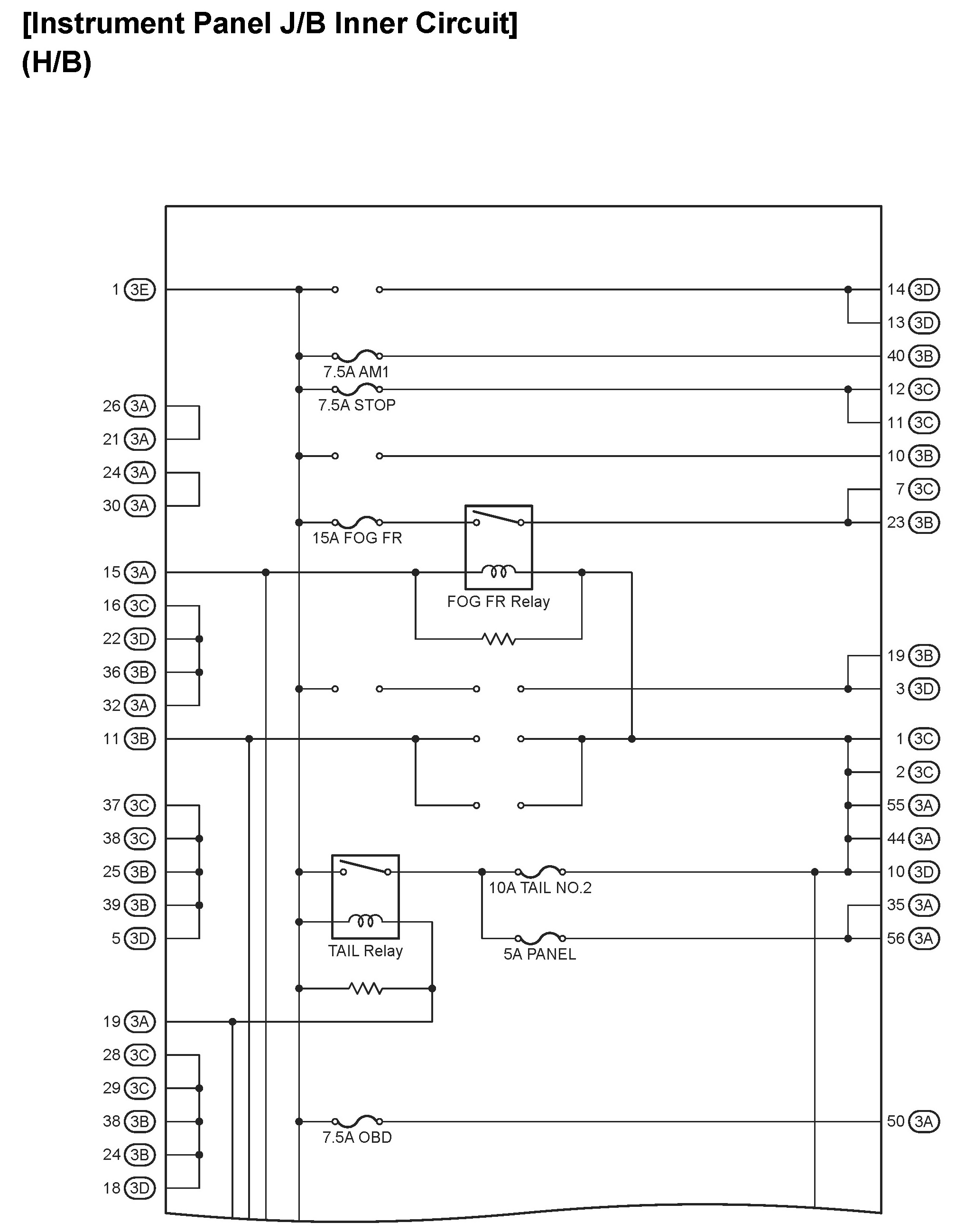

44 - Instrument Panel J/B Inner Circuit:

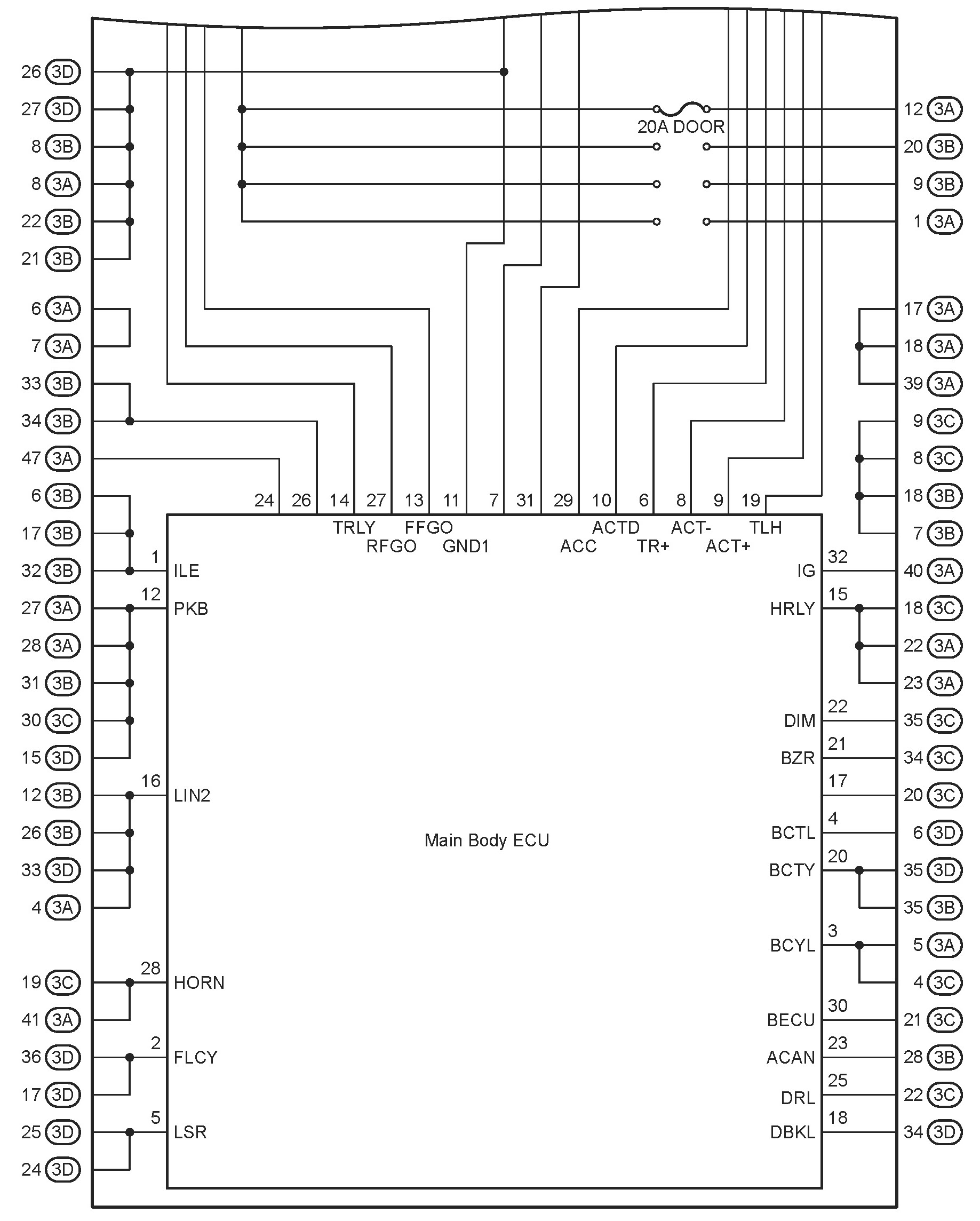

45 - Instrument Panel J/B Inner Circuit:

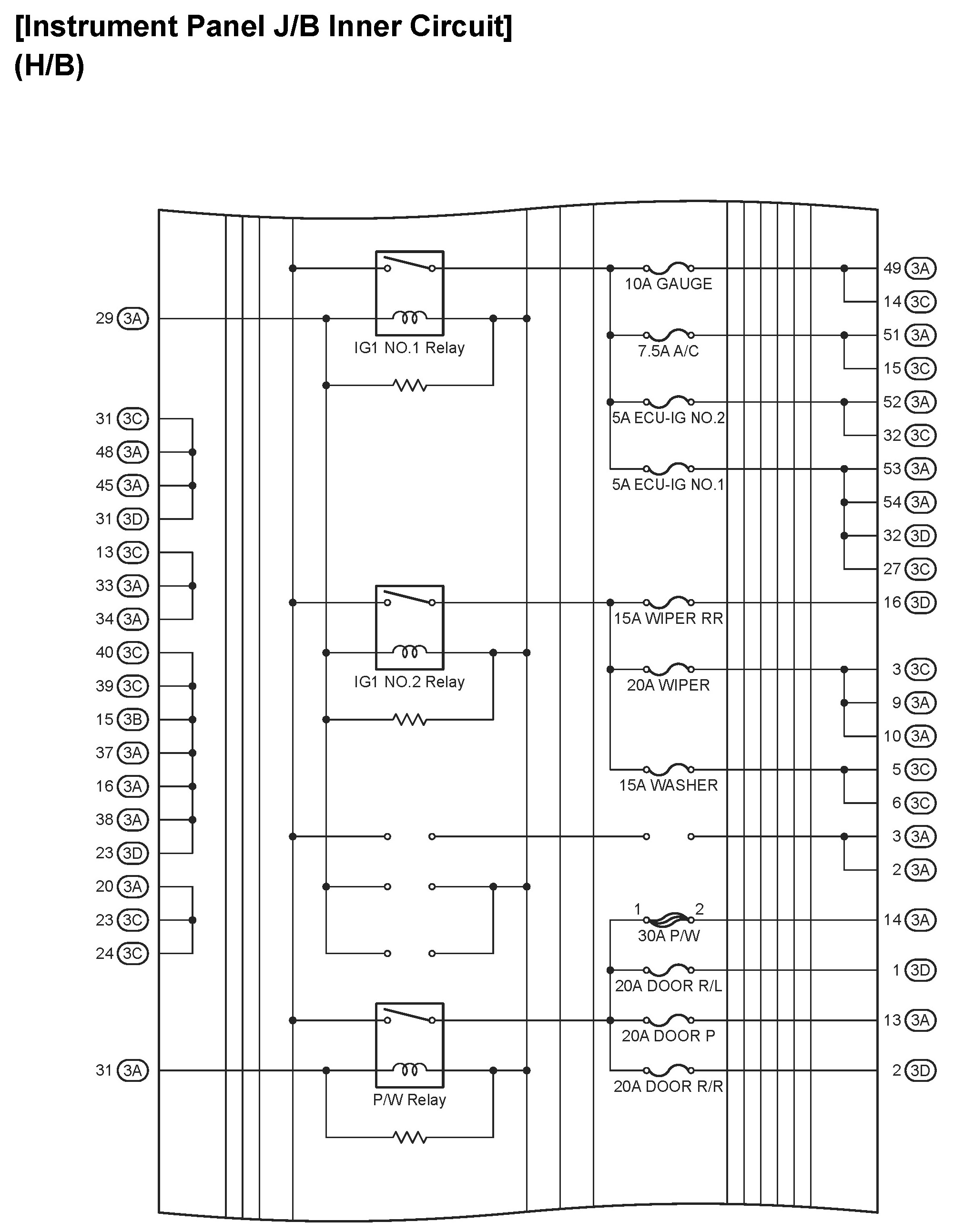

46 - Instrument Panel J/B Inner Circuit:

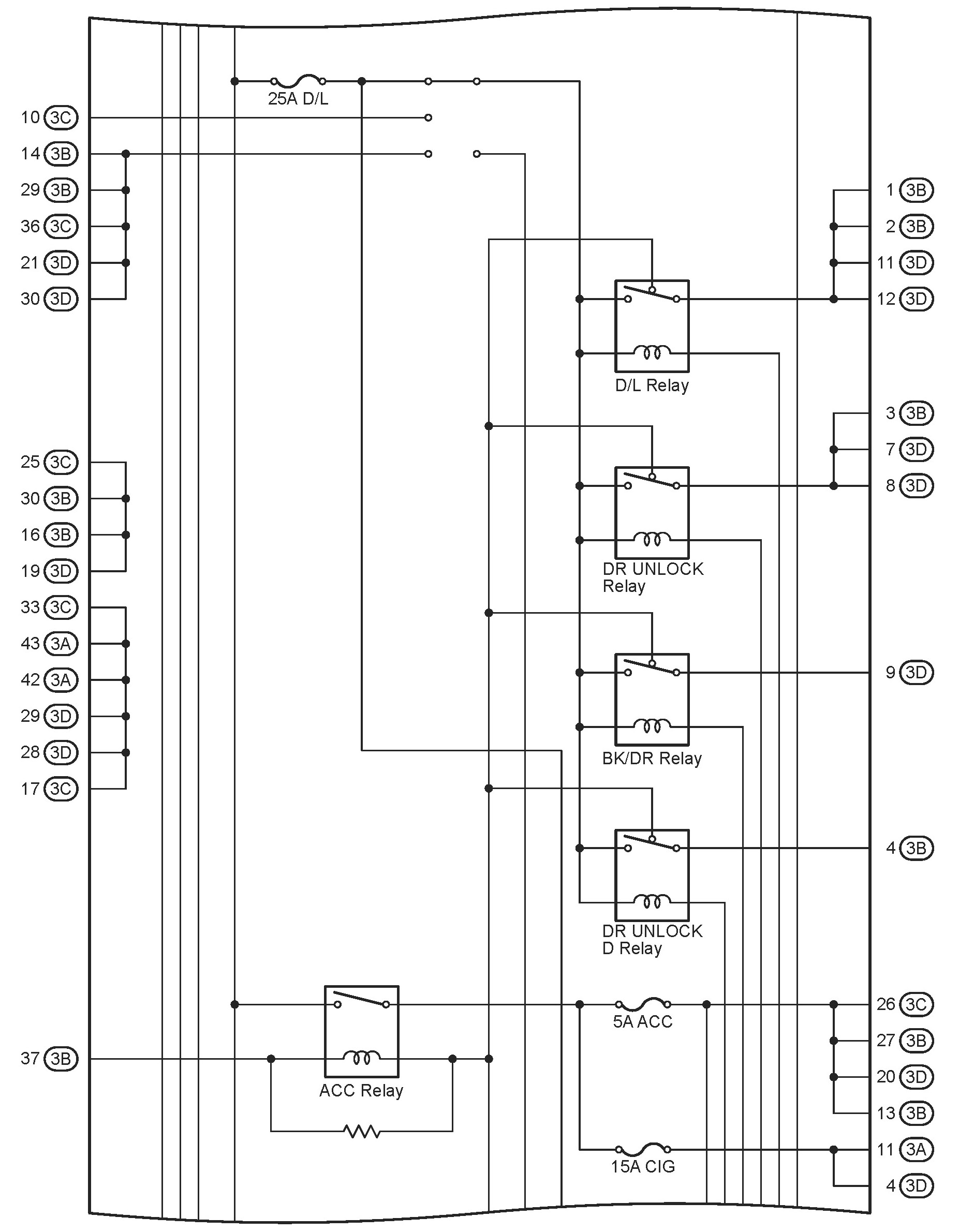

47 - Instrument Panel J/B Inner Circuit:
