Components (from 07/2011)
Components (from 07/2011)

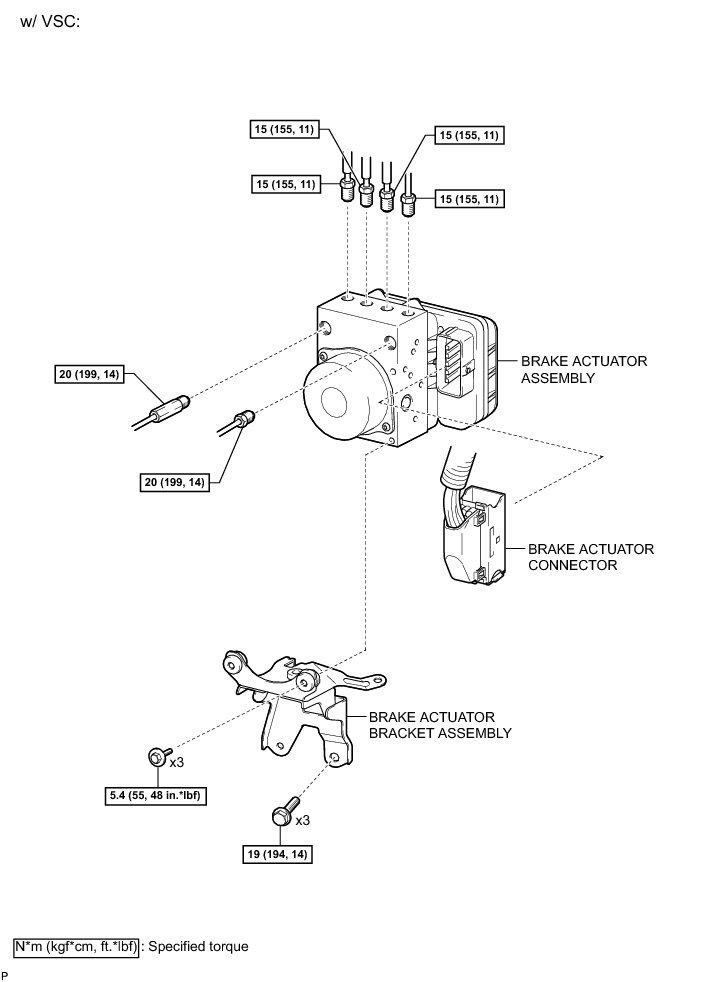

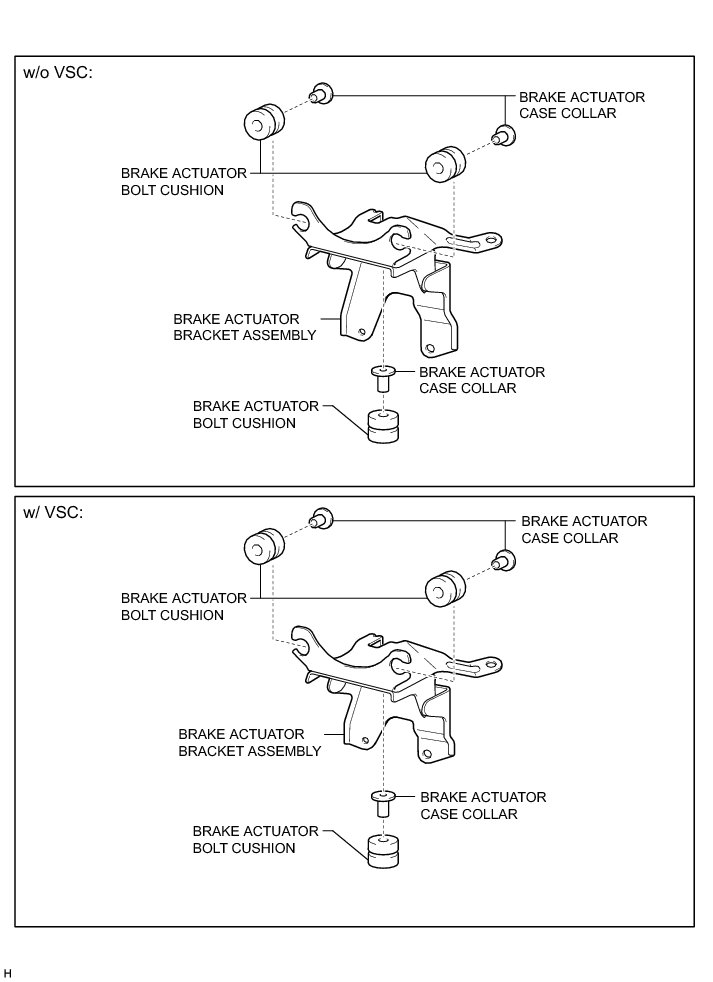

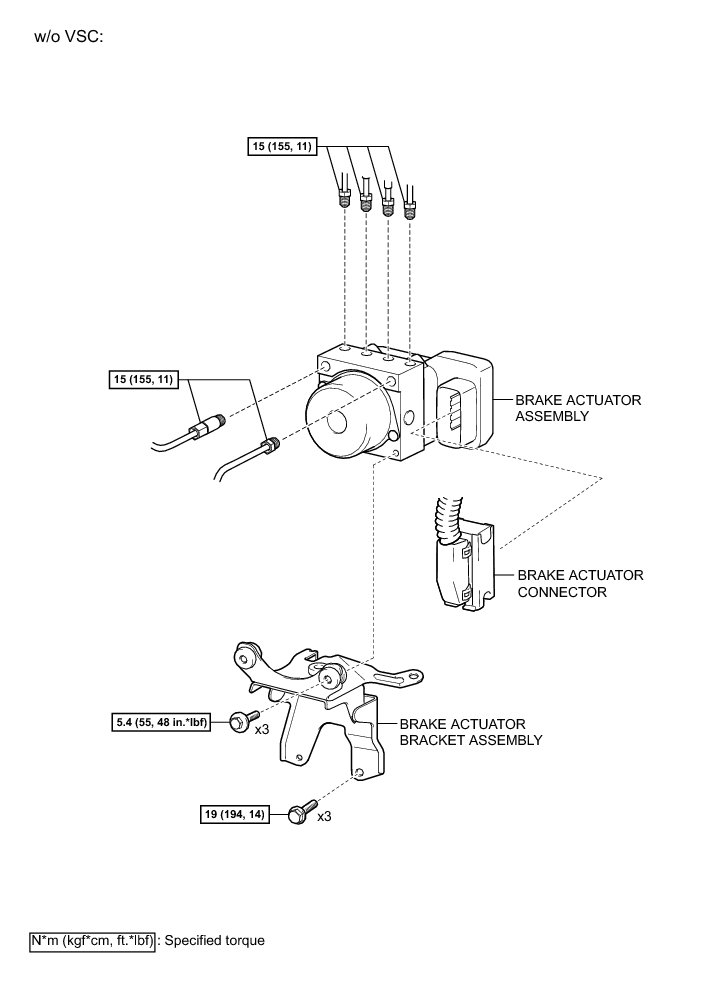

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR (for Hatchback): COMPONENTS
