Components (from 07/2011)
Components (from 07/2011)

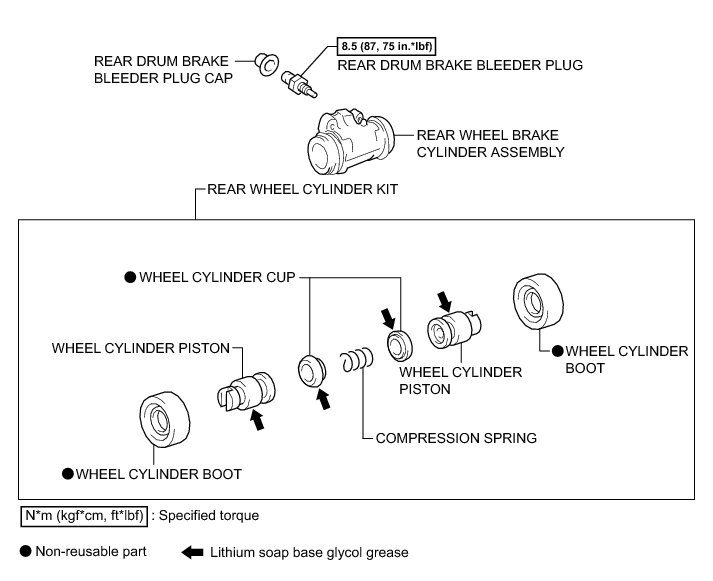

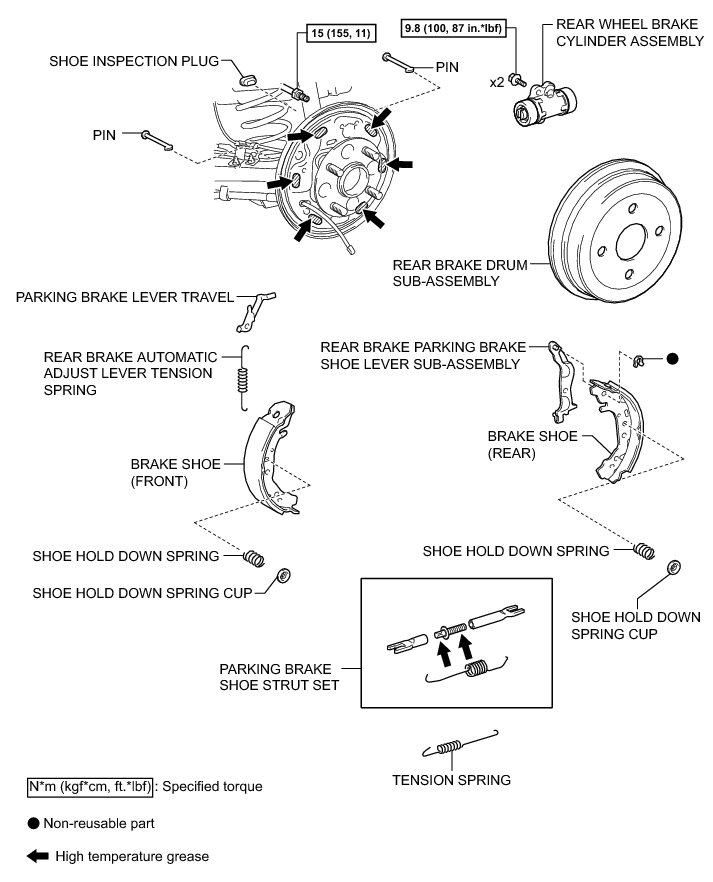

BRAKE (REAR): REAR BRAKE (for Hatchback Drum Type): COMPONENTS
