Yaris Hatchback L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Description and Operation
>>
Anti-Lock Brake System (for Hatchback)
>>
System Diagram (from 07/2011)
System Diagram (from 07/2011)

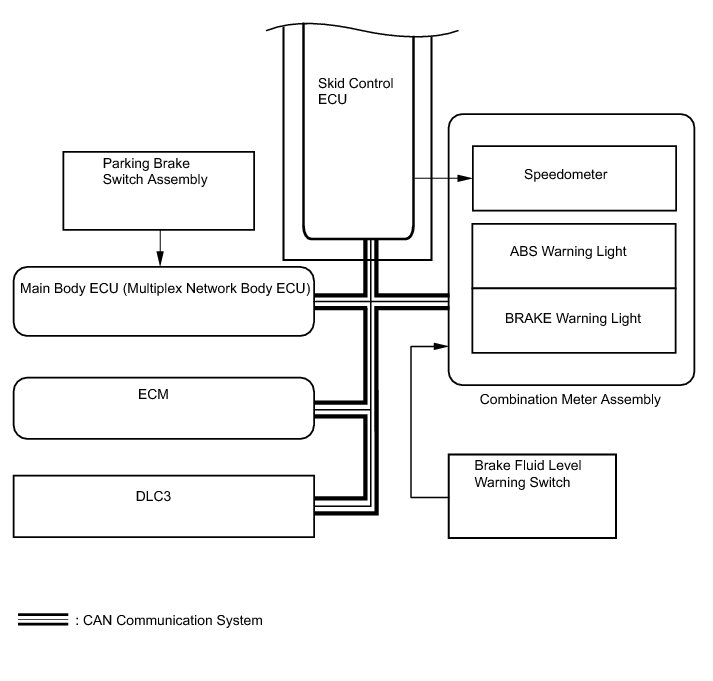

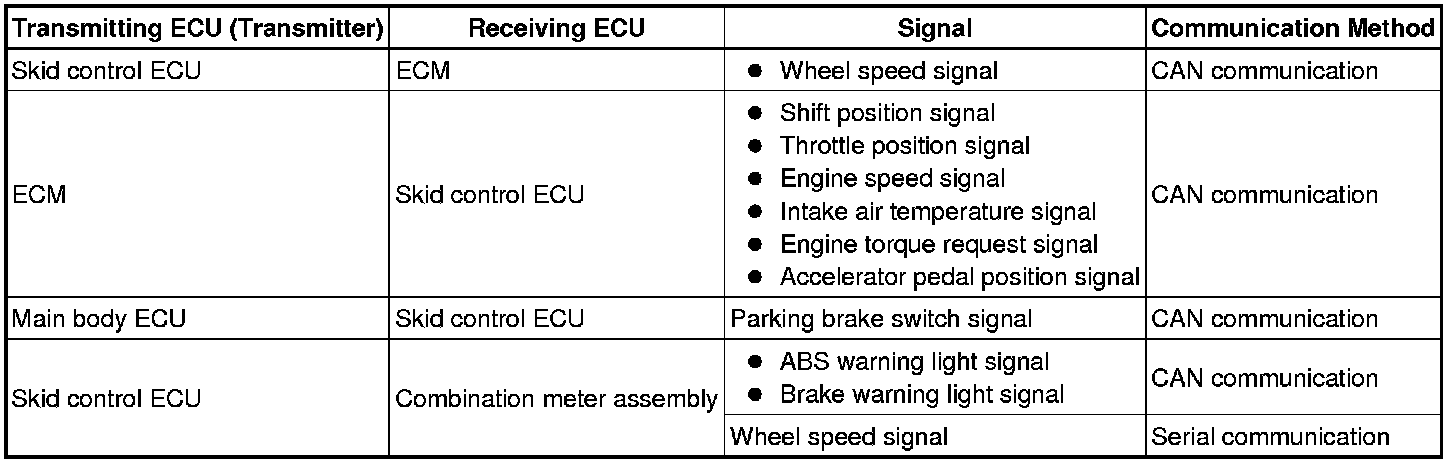

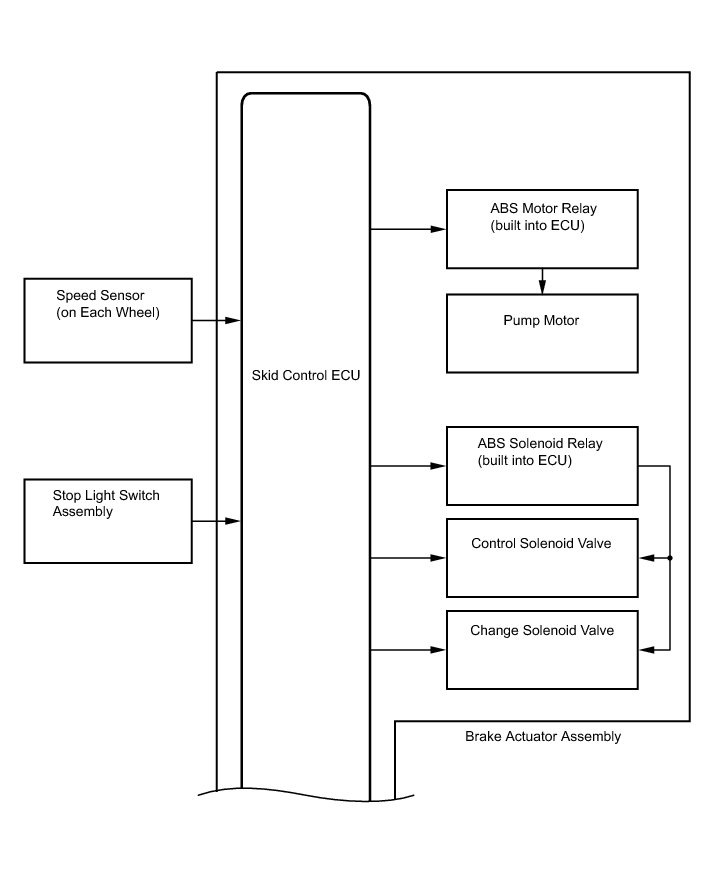

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ANTI-LOCK BRAKE SYSTEM (for Hatchback): SYSTEM DIAGRAM
