Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Front Seat Assembly (for Hatchback Front Passenger Side) >> Components (from 07/2011)

Components (from 07/2011)

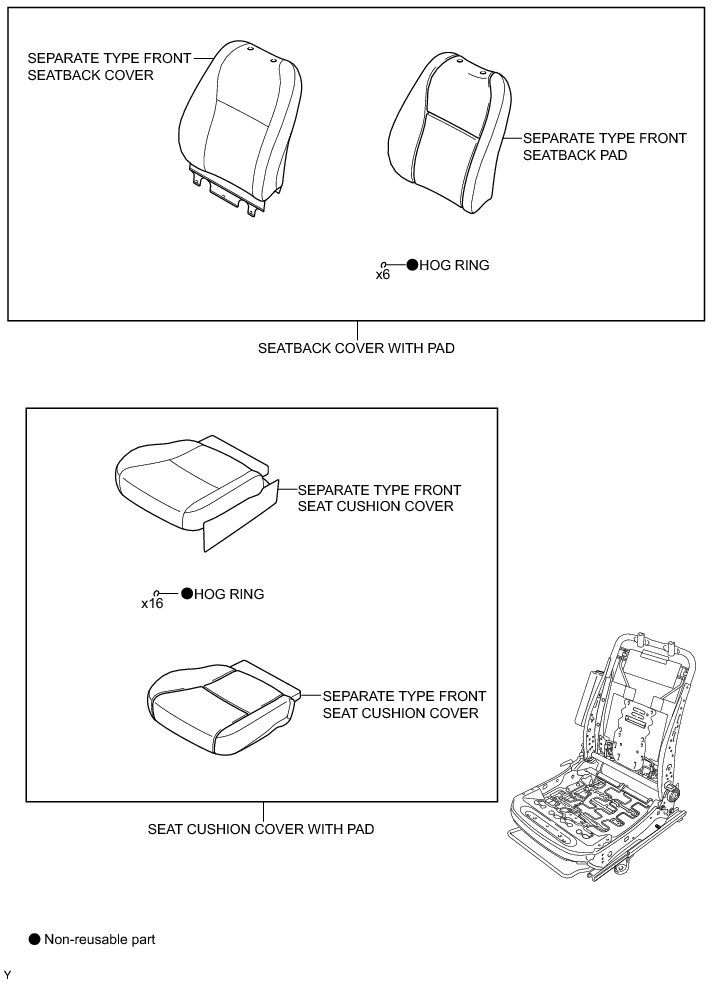

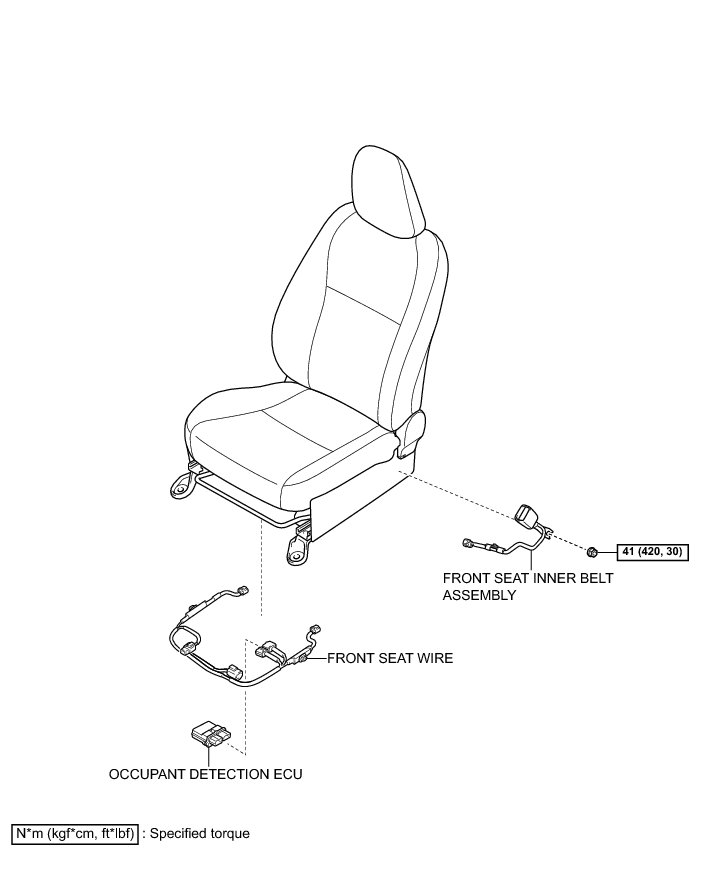

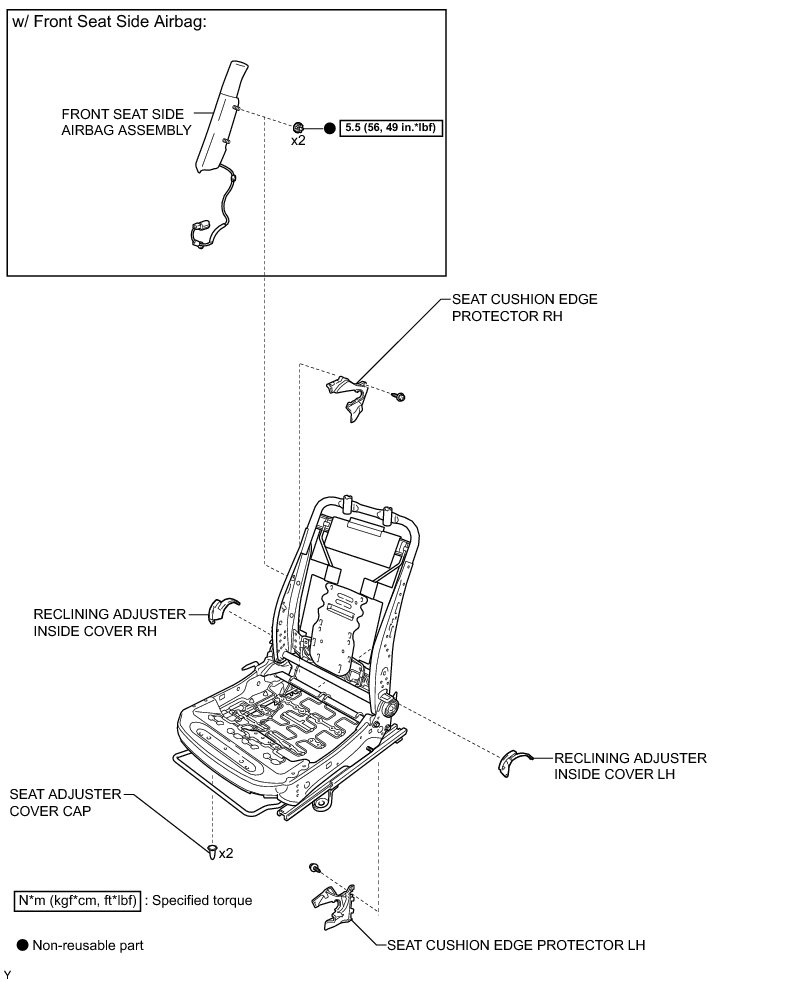

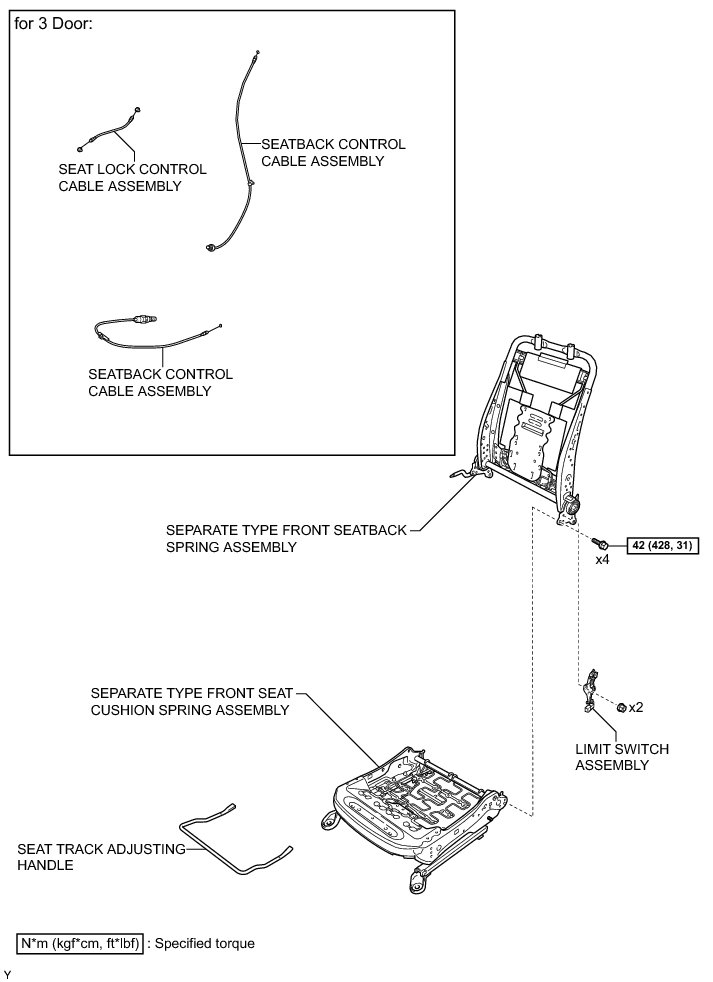

SEAT: FRONT SEAT ASSEMBLY (for Hatchback Front Passenger Side): COMPONENTS
