Components (from 07/2011)

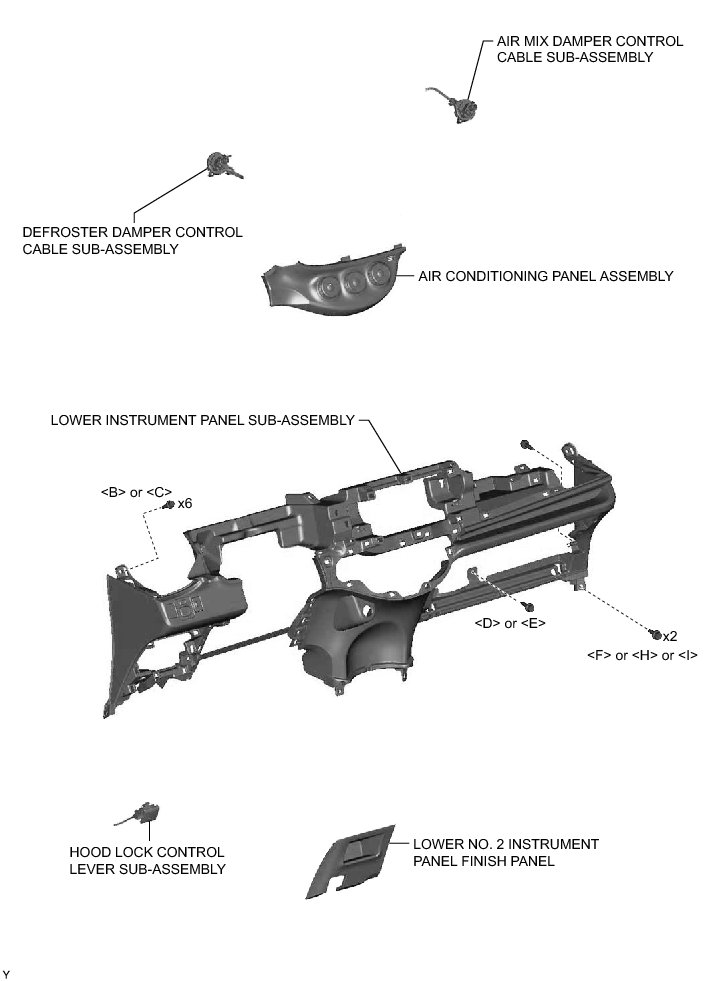

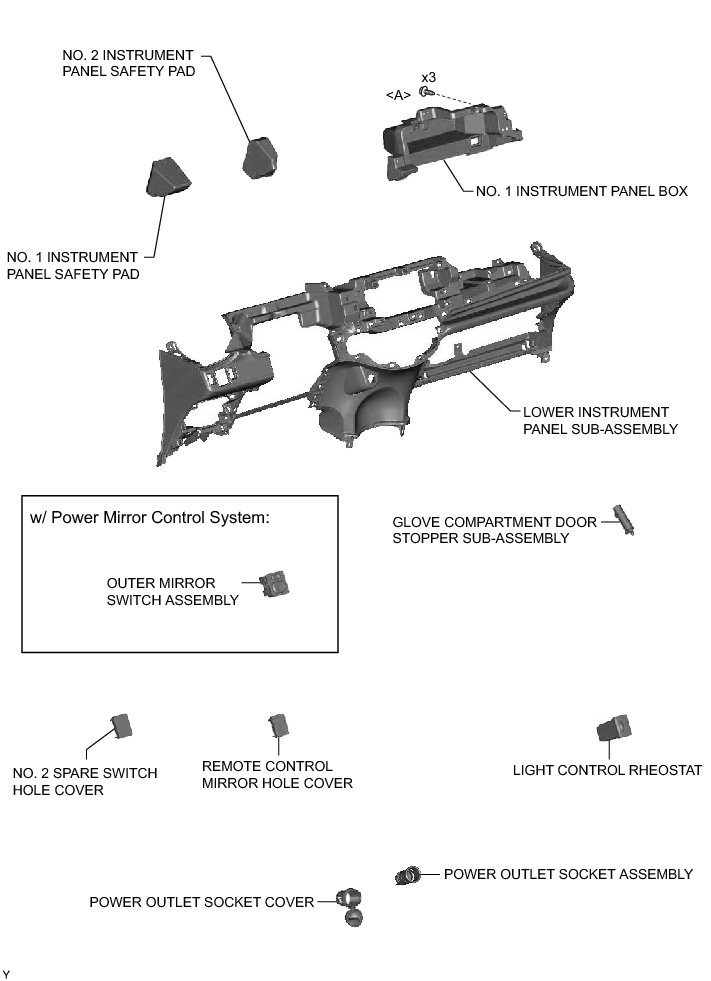

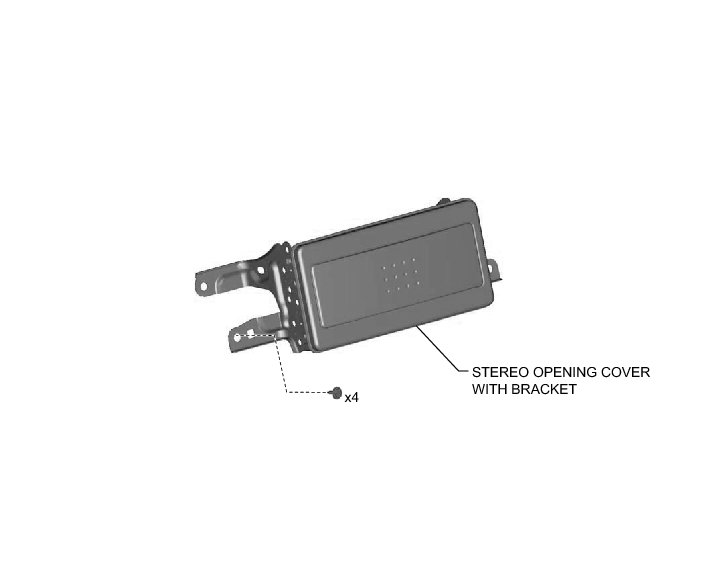

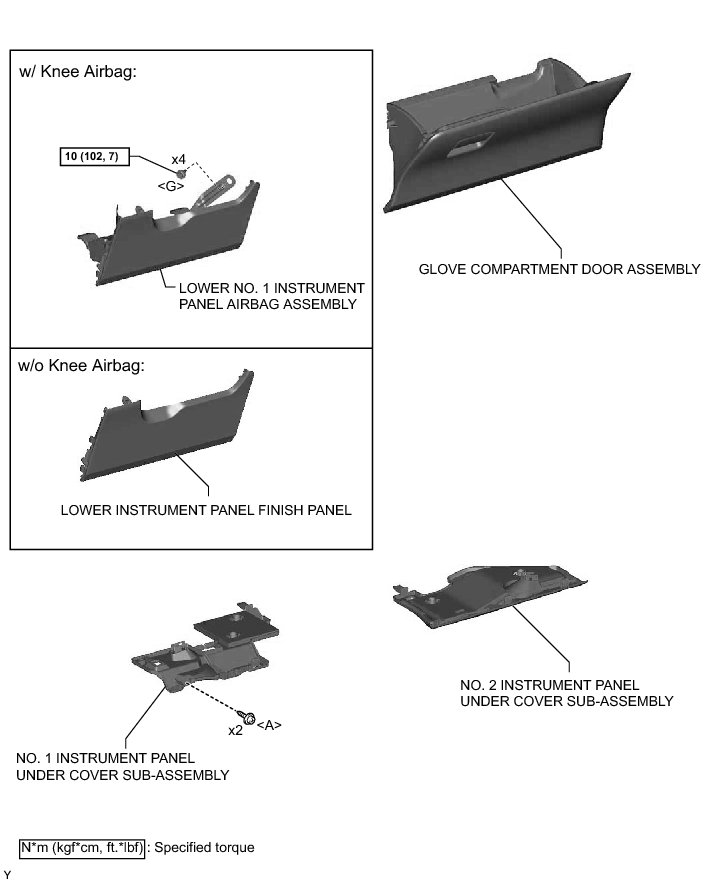

INTERIOR PANELS / TRIM: LOWER INSTRUMENT PANEL (for Hatchback): COMPONENTS
